What are the Dimensions of the Peugeot Partner III (2018-on)?

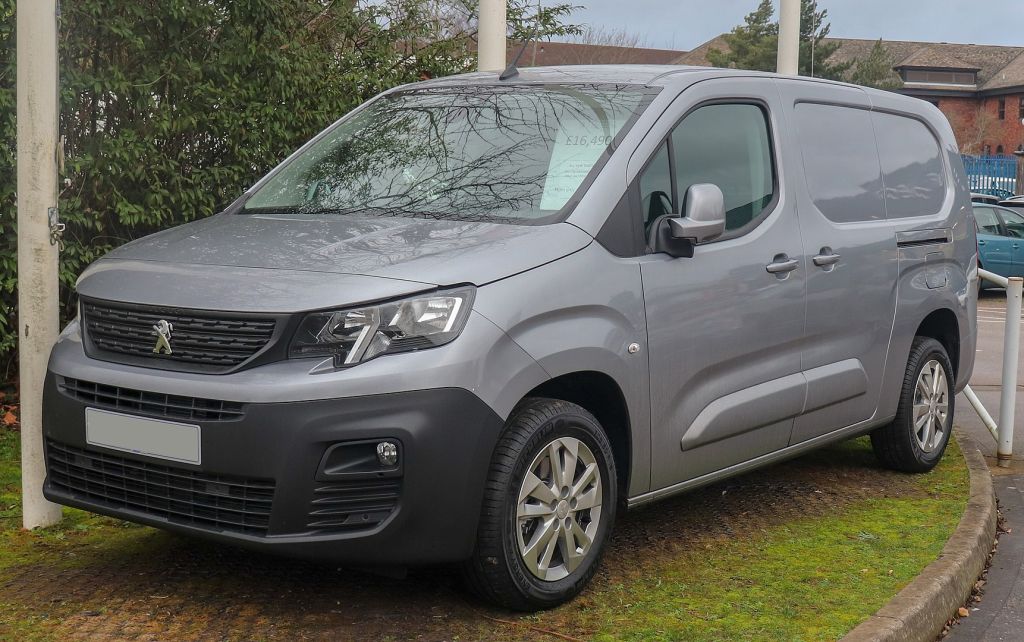

Door Vauxford - Own work, CC BY-SA 4.0

CENTIMETERS

  • The interior dimensions (length) of the Peugeot Partner III cargo space is 1820mm (L1), and 2170mm (L2).
  • The interior width of the is 1714mm and the exterior width is 1831mm.
  • The interior height of the Partner III is 1305mm (H1), and 1550mm (H2).
  • The wheelbase lengths are 2755mm (SWB), and 3105mm (MWB).
  • The width between the wheel arches on this model is 1230mm.

INCHES

  • The interior dimensions (length) of the Peugeot Partner III cargo space is 71.7" (L1), and 85.4" (L2).
  • The interior width of the is 67.5" and the exterior width is 72.1".
  • The interior height of the Partner III is 51.4" (H1), and 61" (H2).
  • The wheelbase lengths are 108.5" (SWB), and 122.2" (MWB).
  • The width between the wheel arches on this model is 48.4".

Are these dimensions right for you?

Production years: 2018 - present Generation: 3 Type of van: cargo Body style: Panel Also known as: Opel Combo E

Dimensions in tables

Outside dimensions of the Partner III:

Exterior L1 L2 Width
Exterior length (mm) 4390 4740 1831
Exterior length (inch) 172.8 186.6 72.1

H1=L1H1
H2=L2H1
H3=L1H2
H4=L2H2

All models of the Peugeot Partner III have the same interior and exterior width: 67.5" or 1714mm (interior max); and 72.1" or 1831mm (exterior).

Interior dimensions of the Partner III:

Inside dimensions L1 L2 Width
Interior length (mm) 1820 2170 1714
Interior length (inch) 71.7 85.4 67.5

Maximum floor surface:

Max. floor area L1 L2
Square meters (m2) 3.1 3.7
Square feet (ft2) 33.6 40

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1230mm, or 48.4".

Peugeot Partner III roof height:

Roof in millimeters H1 H2 H3 H4
Interior height (mm) 1305 1550
Exterior height (mm) 1845 1880 2100 2125
Roof in inches H1 H2 H3 H4
Interior height (inch) 51.4 61
Exterior height (inch) 72.6 74 82.7 83.7

Wheelbase distance:

Wheelbase short (SWB) medium (MWB)
Wheelbase length (mm) 2755 3105
Wheelbase length (inch) 108 122

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 700
Door height (mm) 1175
Door width (inch) 27.6
Door height (inch) 46.3

Rear doors:

Barn door measurements

Rear barn door Regular H2
Door width (mm) 1231
Door height (mm) 1250 1455
Door width (inch) 48.5
Door height (inch) 49.2 57.3

Load floor height:

Height Metric (mm) Inches
Minimal loading sill height 545 21.5

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft) Wall-to-wall (m) Wall-to-wall (ft)
Short wheelbase 11.3 37.1 12.5 41

Miscellaneous dimensions:

Dimension mm inch
Front overhang 892 35.1
Rear overhang 726 28.6
Front track 1553 61.1
Rear track 1567 61.7
