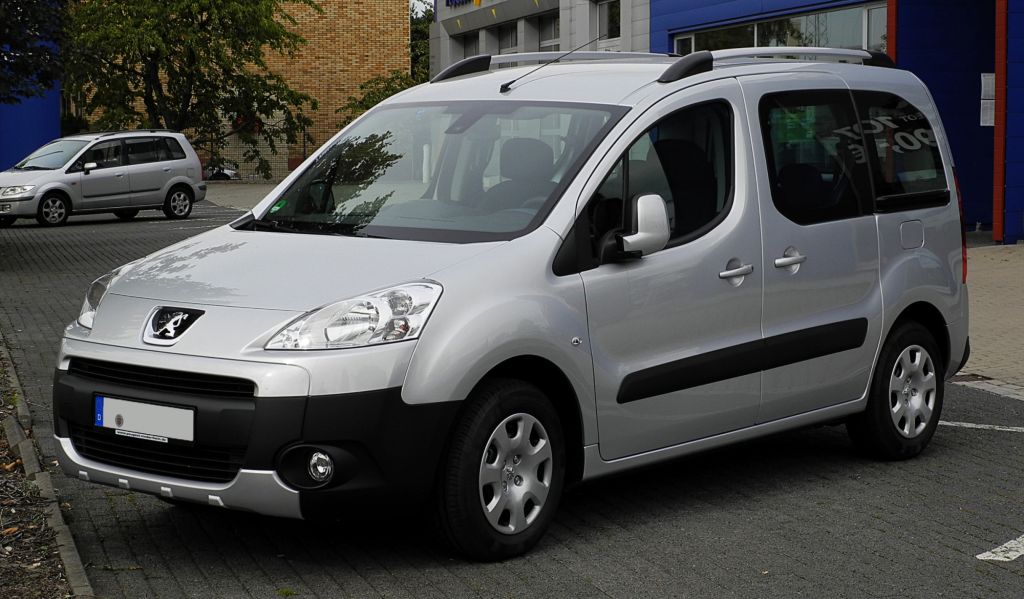

Exact Dimensions for the Peugeot Partner II Tepee (2008-2018)

M 93, CC BY-SA 3.0 DE, via Wikimedia Commons

CENTIMETERS

  • The interior dimensions (length) of the Peugeot Partner II Tepee cargo space is 1800mm (L1).
  • The interior width of the is 1380mm and the exterior width is
  • The interior height of the Partner II Tepee is 1250mm (H1).
  • The wheelbase lengths are 2728mm (SWB).
  • The width between the wheel arches on this model is 1230mm.

INCHES

  • The interior dimensions (length) of the Peugeot Partner II Tepee cargo space is 70.9" (L1).
  • The interior width of the is 54.3" and the exterior width is
  • The interior height of the Partner II Tepee is 49.2" (H1).
  • The wheelbase lengths are 107.4" (SWB).
  • The width between the wheel arches on this model is 48.4".

Are these dimensions right for you?

Production years: 2008 - 2018 Generation: 2 Type of van: cargo Body style: Panel Also known as: Citroen Berlingo 2

Dimensions in tables

Outside dimensions of the Partner II Tepee:

Exterior L1 L3 Width
Exterior length (mm) 4380 4628
Exterior length (inch) 172.4 182.2

All models of the Peugeot Partner II Tepee have the same interior and exterior width: 54.3" or 1380mm (interior); and .

Interior dimensions of the Partner II Tepee:

Inside dimensions L1 L3 Width
Interior length (mm) 1800 2050 1380
Interior length (inch) 70.9 80.7 54.3

Maximum floor surface:

Max. floor area L1 L3
Square meters (m2) 2.5 2.8
Square feet (ft2) 26.7 30.5

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1230mm, or 48.4".

Peugeot Partner II Tepee roof height:

Roof in millimeters H1 H3
Interior height (mm) 1250
Exterior height (mm) 1801 1828
Roof in inches H1 H3
Interior height (inch) 49.2
Exterior height (inch) 70.9 72

Wheelbase distance:

Wheelbase short (SWB)
Wheelbase length (mm) 2728
Wheelbase length (inch) 107

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular Large
Door width (mm) 640 737
Door height (mm) 1100 1192
Door width (inch) 25.2 29
Door height (inch) 43.3 46.9

Rear doors:

Barn door measurements

Rear barn door Regular
Door width (mm) 1250
Door height (mm) 1148
Door width (inch) 49.2
Door height (inch) 45.2

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft)
Short wheelbase 11 36.1

Miscellaneous dimensions:

Dimension mm inch
Front track 1505 59.3
Rear track 1554 61.2
