Dimensions for the Opel/Vauxhall Combo D (2011-2018)

Opel Combo D

CENTIMETERS

  • The interior dimensions (length) of the Opel/Vauxhall Combo cargo space is 1820mm (L1), and 2170mm (L2).
  • The interior width of the is 1230mm and the exterior width is 1832mm.
  • The interior height of the Combo is 1305mm (H1), and 1550mm (H2).
  • The wheelbase lengths are 2755mm (SWB), and 3105mm (LWB).
  • The width between the wheel arches on this model is 1186mm.

INCHES

  • The interior dimensions (length) of the Opel/Vauxhall Combo cargo space is 71.7" (L1), and 85.4" (L2).
  • The interior width of the is 48.4" and the exterior width is 72.1".
  • The interior height of the Combo is 51.4" (H1), and 61" (H2).
  • The wheelbase lengths are 108.5" (SWB), and 122.2" (LWB).
  • The width between the wheel arches on this model is 46.7".

Are these dimensions right for you?

Production years: 2011 - 2018 Generation: 3 D Type of van: cargo Body style: Panel Also known as: Fiat Doblò Vauxhall Combo Ram ProMaster City

Dimensions in tables

Outside dimensions of the Combo:

Exterior L1 L2 Width
Exterior length (mm) 4390 4740 1832
Exterior length (inch) 172.8 186.6 72.1

All models of the Opel/Vauxhall Combo have the same interior and exterior width: 48.4" or 1230mm (interior); and 72.1" or 1832mm (exterior).

Interior dimensions of the Combo:

Inside dimensions L1 L2 Width
Interior length (mm) 1820 2170 1230
Interior length (inch) 71.7 85.4 48.4

Maximum floor surface:

Max. floor area L1 L2
Square meters (m2) 2.2 2.7
Square feet (ft2) 24.1 28.7

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1186mm, or 46.7".

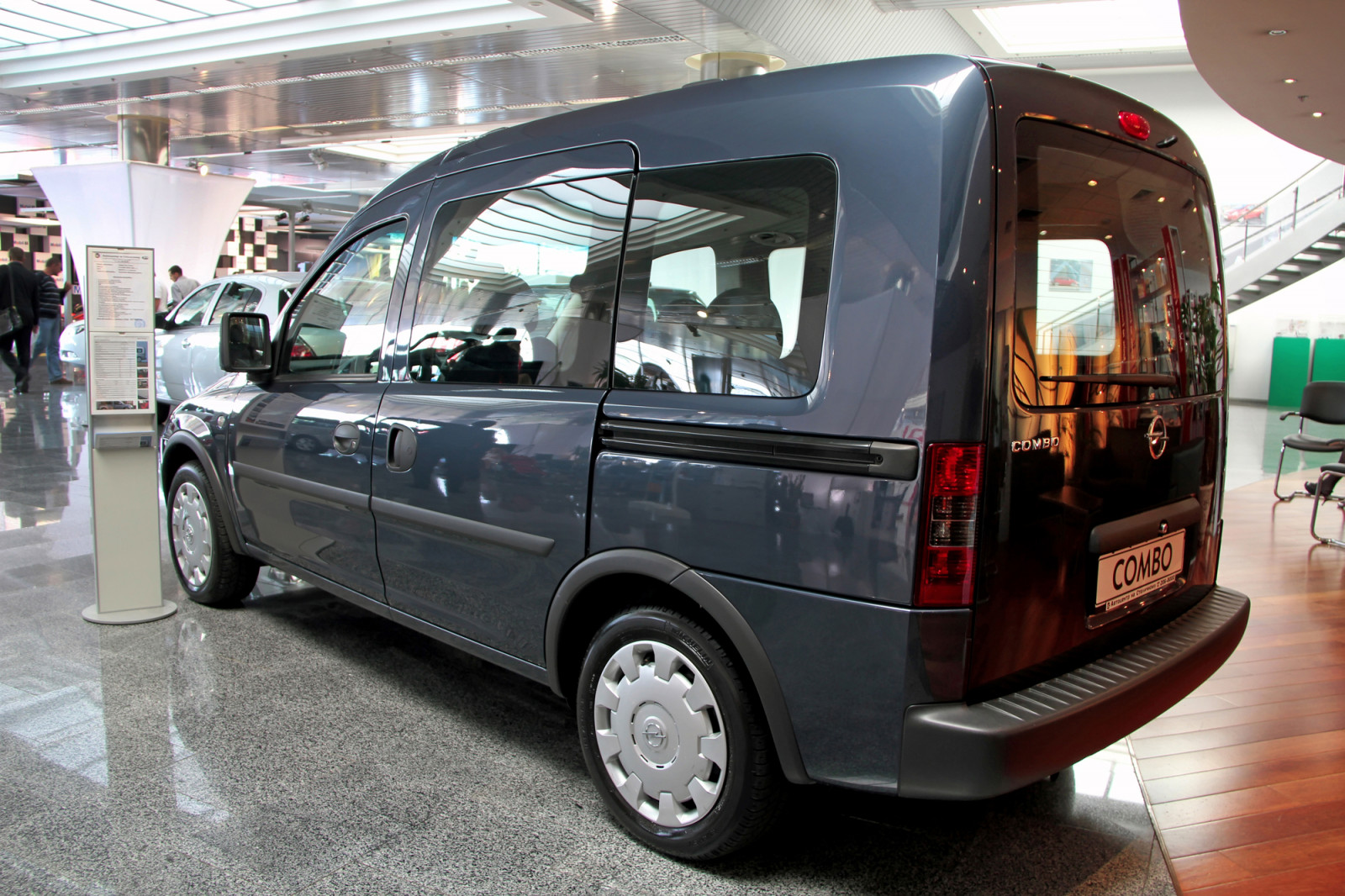

Example of a Combo

Opel/Vauxhall Combo roof height:

Roof in millimeters H1 H2 H3 H4
Interior height (mm) 1305 1550
Exterior height (mm) 1895 1927 2100 2125
Roof in inches H1 H2 H3 H4
Interior height (inch) 51.4 61
Exterior height (inch) 74.6 75.9 82.7 83.7

Wheelbase distance:

Wheelbase short (SWB) long (LWB)
Wheelbase length (mm) 2755 3105
Wheelbase length (inch) 108 122

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 700
Door height (mm) 1175
Door width (inch) 27.6
Door height (inch) 46.3

Rear doors:

Barn door measurements

Rear barn door Regular H2
Door width (mm) 1231
Door height (mm) 1166 1455
Door width (inch) 48.5
Door height (inch) 45.9 57.3

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft)
Short wheelbase 11.2 36.7
Long wheelbase 12.5 41
