What are the dimensions of the Opel/Vauxhall Movano (2014-on)?

Example of a Movano

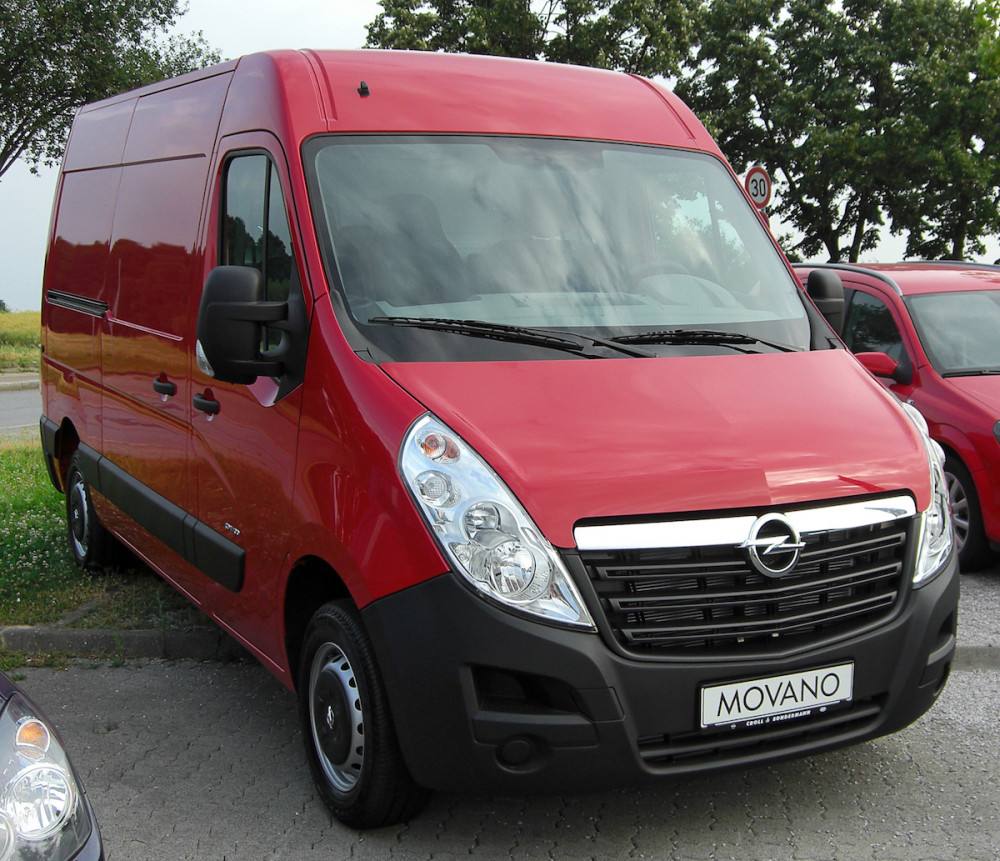

A 2nd generation Opel/Vauxhall Movano (also called 'B') - L2H2

I'm working on my own panel van conversion, and I found that It's pretty hard to find the dimensions of just about any van. It's all over the place. That's why I've created this article. Why not help others that are doing something similar?

This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.'

CENTIMETERS

  • The interior dimensions (length) of the Opel/Vauxhall Movano cargo space is 2583mm (L1), 3083mm (L2), 3733mm (L3), and 4383mm (L4).
  • The interior width of the Movano B is 1765mm and the exterior width is 2470mm.
  • The interior height of the Opel/Vauxhall Movano is 1700mm (H1), 1894mm (H2), 2048mm (H3), and 2144mm (H4).
  • The wheelbase lengths are 3182mm (SWB), 3682mm (MWB), and 4332mm (LWB).
  • The width between the wheel arches on this model is 1380mm.

INCHES

  • The interior dimensions (length) of the Opel/Vauxhall Movano cargo space is 101.7" (L1), 121.4" (L2), 147" (L3), and 172.6" (L4).
  • The interior width of the Movano B is 69.5" and the exterior width is 97.2".
  • The interior height of the Opel/Vauxhall Movano is 66.9" (H1), 74.6" (H2), 80.6" (H3), and 84.4" (H4).
  • The wheelbase lengths are 125.3" (SWB), 145" (MWB), and 170.6" (LWB).
  • The width between the wheel arches on this model is 54.3".

Prefer tables? So do I. Click the button (scrolls down), or read on:

First, more on the Movano

The Opel or Vauxhall Movano B is the second generation Movano Vans, and is made from 2014 onwards.
Vauxhall is the brand name for all UK produced Opel cars, and has right-side steering.
The Movano is produced by Renault in France, and is very similair to the Renault Master II.


Dimensions in tables

Outside dimensions of the Movano:

Exterior L1 L2 L3 L4 Width
Exterior length (mm) 5048 5548 6198 6848 2470
Exterior length (inch) 198.7 218.4 244 269.6 97.2

All models of the Opel/Vauxhall Movano have the same interior and exterior width: 69.5" or 1765mm (interior); and 97.2" or 2470mm (exterior).

Interior dimensions of the Movano:

Inside dimensions L1 L2 L3 L4 Width
Interior length (mm) 2583 3083 3733 4383 1765
Interior length (inch) 101.7 121.4 147 172.6 69.5

Maximum floor surface:

Max. floor area L1 L2 L3 L4
Square meters (m2) 4.6 5.4 6.6 7.7
Square feet (ft2) 49.1 58.6 70.9 83.3

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1380mm, or 54.3".

Opel/Vauxhall Movano roof height:

Roof in millimeters H1 H2 H3 H4
Interior height (mm) 1700 1894 2048 2144
Exterior height (mm) 2307 2500 2749 2808
Roof in inches H1 H2 H3 H4
Interior height (inch) 66.9 74.6 80.6 84.4
Exterior height (inch) 90.8 98.4 108.2 110.6

Wheelbase distance:

Wheelbase short (SWB) medium (MWB) long (LWB)
Wheelbase length (mm) 3182 3682 4332
Wheelbase length (inch) 125 145 171

Door measurements:

Doors Side door Rear door
Door width (mm) 1050 1527
Door height (mm) 1581 1627
Door height H2 (mm) 1820
Side door Rear door
Door width (inch) 41.3 60.1
Door height (inch) 62.2 64.1
Door height H2 (inch) 71.7

More Info on Dimensions

If you want to know...

  • why there's a difference in exterior and interior width
  • what L1 or H3 means
  • how to read measurements
  • or why dimensions matter

... I encourage you to read my post on how to understand van dimensions.


Example of a Movano

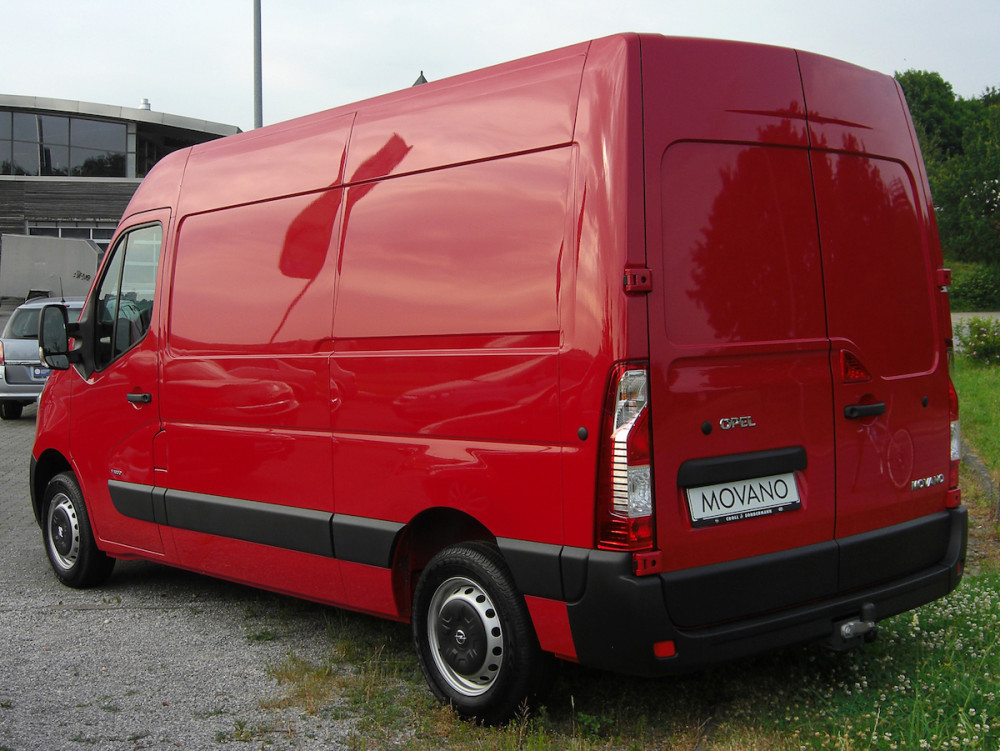

A rear view of the 2nd generation Opel/Vauxhall Movano (B) - L2H2

Can you stand up in a Opel/Vauxhall Movano B?

Standing up in an empty van

The interior roof height of a Opel/Vauxhall Movano is 1700mm (H1) - 1894mm (H2) - 2048mm (H3) - 2144mm (H4).
If you are of medium height (178cm or 5"10') you can't stand up in a Opel/Vauxhall Movano H1. But you can stand up in a Opel/Vauxhall Movano H2 and up.

What happens if I insulate the van?

Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Movano H1. But you would still be able to stand up in a H2 model and up.

What's a Movano B high top?

Opel/Vauxhall provides their Movano Bs with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.
