What are the Dimensions for the Toyota Sienna 4 (2020-on)?

CENTIMETERS

  • The interior dimensions (length) of the Toyota Sienna 4 XL40 cargo space is 1828mm (L1).
  • The interior width of the is 1283mm and the exterior width is 1994mm.
  • The interior height of the Sienna 4 XL40 is 953mm (H1).
  • The wheelbase lengths are 3061mm (SWB).

INCHES

  • The interior dimensions (length) of the Toyota Sienna 4 XL40 cargo space is 72" (L1).
  • The interior width of the is 50.5" and the exterior width is 78.5".
  • The interior height of the Sienna 4 XL40 is 37.5" (H1).
  • The wheelbase lengths are 120.5" (SWB).

Are these dimensions right for you?

Production years: 2020 - present Generation: 4 Type of van: cargo Body style: Panel

Dimensions in tables

Outside dimensions of the Sienna 4 XL40:

Exterior L1 Width
Exterior length (mm) 5174 1994
Exterior length (inch) 203.7 78.5

H1=unloaded, with roof rails
H2=unloaded, without roof rails

All models of the Toyota Sienna 4 XL40 have the same interior and exterior width: 50.5" or 1283mm (interior); and 78.5" or 1994mm (exterior).

Interior dimensions of the Sienna 4 XL40:

Inside dimensions L1 Width
Interior length (mm) 1828 1283
Interior length (inch) 72 50.5

L1=from 2nd row to end of trunk (seats are not folded down),youtube video (actual measurements)
H2=youtube video (actual measurements)

Maximum floor surface:

Max. floor area L1
Square meters (m2) 2.3
Square feet (ft2) 25.2

Please note that this is an indication and does not take into account the wheel arches.

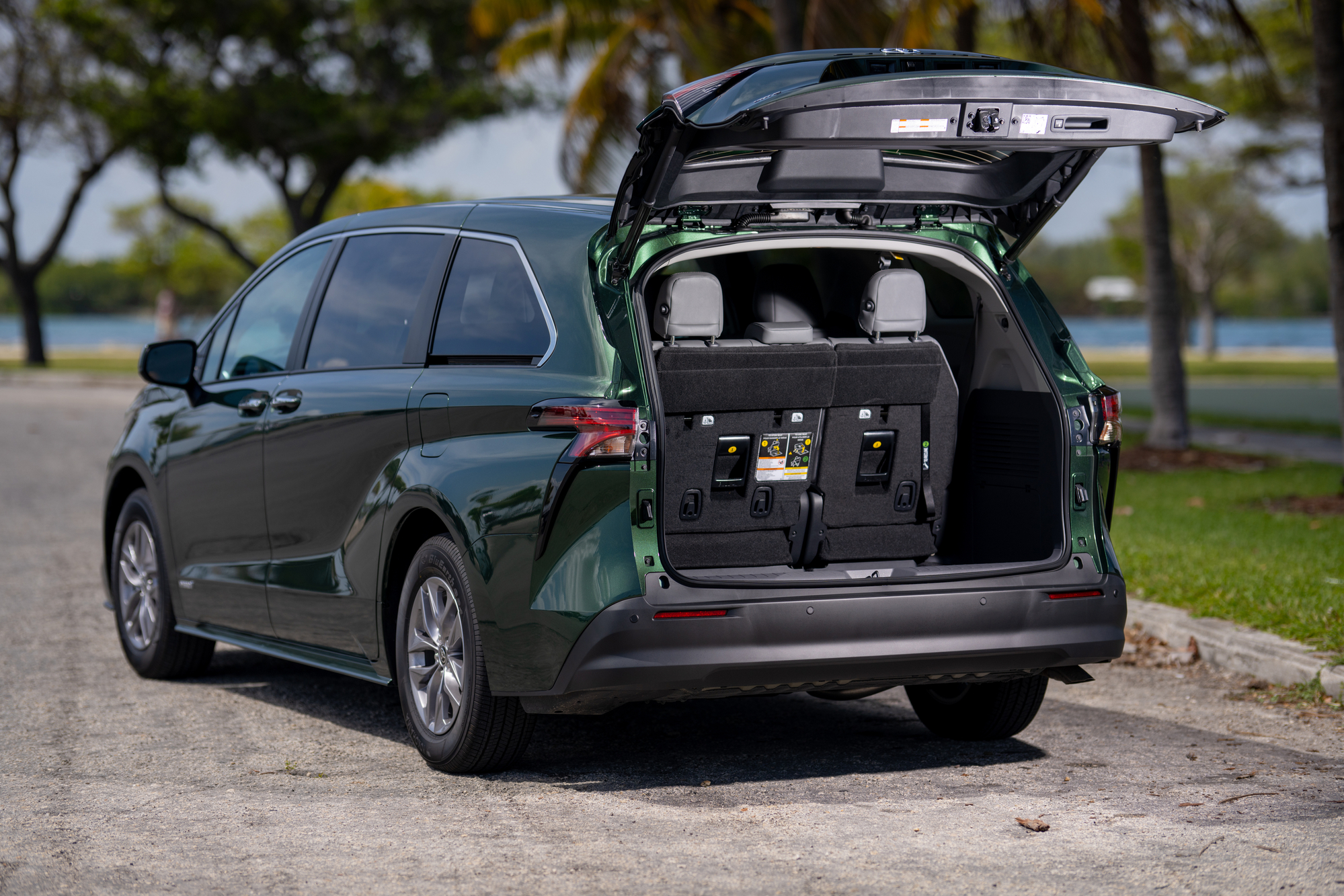

Example of a Sienna 4 XL40

Toyota Sienna 4 XL40 roof height:

Roof in millimeters H1 H2
Interior height (mm) 953
Exterior height (mm) 1740 1770
Roof in inches H1 H2
Interior height (inch) 37.5
Exterior height (inch) 68.5 69.7

Wheelbase distance:

Wheelbase short (SWB)
Wheelbase length (mm) 3061
Wheelbase length (inch) 121

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 940
Door height (mm) 1118
Door width (inch) 37
Door height (inch) 44

Rear doors:

Barn door measurements

Rear barn door
Door width (mm)
Door height (mm)
Door width (inch)
Door height (inch)

Miscellaneous dimensions:

Dimension mm inch
Ground clearance unladen 162 6.4
Front track 1720 67.7
Rear track 1740 68.5
