What are the Dimensions of the Opel Combo E (2018-on)?

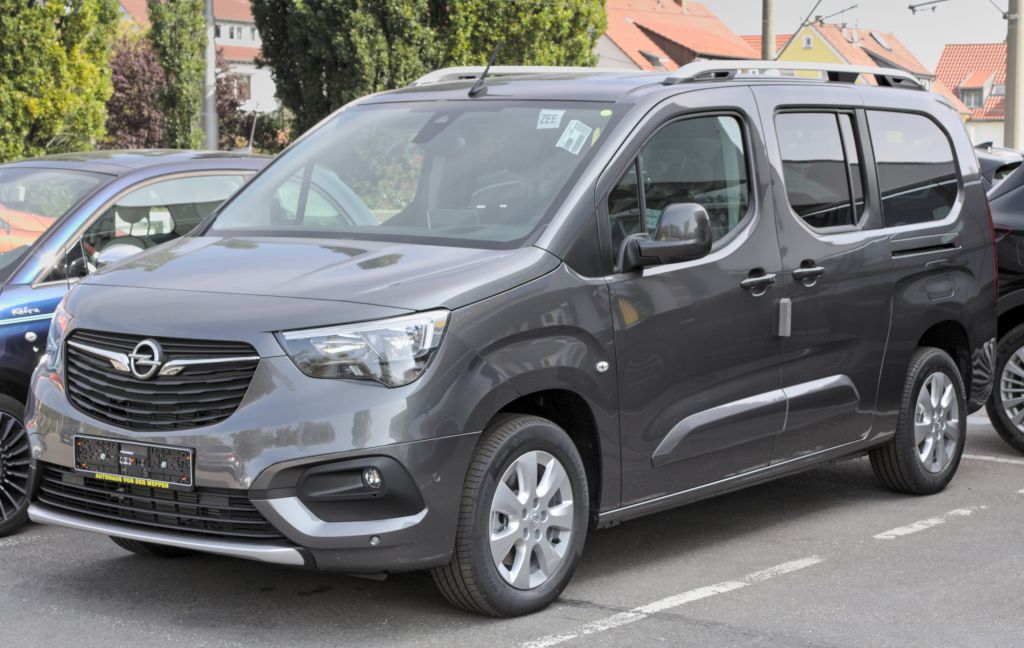

By Alexander Migl - Own work, CC BY-SA 4.0

CENTIMETERS

  • The interior dimensions (length) of the Opel/Vauxhall Combo E cargo space is 1820mm (L1), and 2170mm (L2).
  • The interior width of the is 1714mm and the exterior width is 1831mm.
  • The interior height of the Combo E is 1305mm (H1), and 1550mm (H2).
  • The wheelbase lengths are 2755mm (SWB), and 3105mm (MWB).
  • The width between the wheel arches on this model is 1230mm.

INCHES

  • The interior dimensions (length) of the Opel/Vauxhall Combo E cargo space is 71.7" (L1), and 85.4" (L2).
  • The interior width of the is 67.5" and the exterior width is 72.1".
  • The interior height of the Combo E is 51.4" (H1), and 61" (H2).
  • The wheelbase lengths are 108.5" (SWB), and 122.2" (MWB).
  • The width between the wheel arches on this model is 48.4".

Are these dimensions right for you?

Production years: 2018 - present Generation: 4 Type of van: cargo Body style: Panel Also known as: Peugeot Rifter Citroën Berlingo Toyota ProAce City Vauxhall Combo/Combo Life

Dimensions in tables

Outside dimensions of the Combo E:

Exterior L1 L2 Width
Exterior length (mm) 4390 4740 1831
Exterior length (inch) 172.8 186.6 72.1

H1=L1H1
H2=L2H1
H3=L1H2
H4=L2H2

All models of the Opel/Vauxhall Combo E have the same interior and exterior width: 67.5" or 1714mm (interior max); and 72.1" or 1831mm (exterior).

Interior dimensions of the Combo E:

Inside dimensions L1 L2 Width
Interior length (mm) 1820 2170 1714
Interior length (inch) 71.7 85.4 67.5

Maximum floor surface:

Max. floor area L1 L2
Square meters (m2) 3.1 3.7
Square feet (ft2) 33.6 40

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1230mm, or 48.4".

Opel/Vauxhall Combo E roof height:

Roof in millimeters H1 H2 H3 H4
Interior height (mm) 1305 1550
Exterior height (mm) 1845 1880 2100 2125
Roof in inches H1 H2 H3 H4
Interior height (inch) 51.4 61
Exterior height (inch) 72.6 74 82.7 83.7

Wheelbase distance:

Wheelbase short (SWB) medium (MWB)
Wheelbase length (mm) 2755 3105
Wheelbase length (inch) 108 122

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 700
Door height (mm) 1175
Door width (inch) 27.6
Door height (inch) 46.3

Rear doors:

Barn door measurements

Rear barn door Regular H2
Door width (mm) 1231
Door height (mm) 1250 1455
Door width (inch) 48.5
Door height (inch) 49.2 57.3

Load floor height:

Height Metric (mm) Inches
Minimal loading sill height 545 21.5

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft)
Short wheelbase 11.3 37.1
Medium wheelbase 12.5 41

Miscellaneous dimensions:

Dimension mm inch
Front overhang 892 35.1
Rear overhang 726 28.6
Front track 1553 61.1
Rear track 1567 61.7
