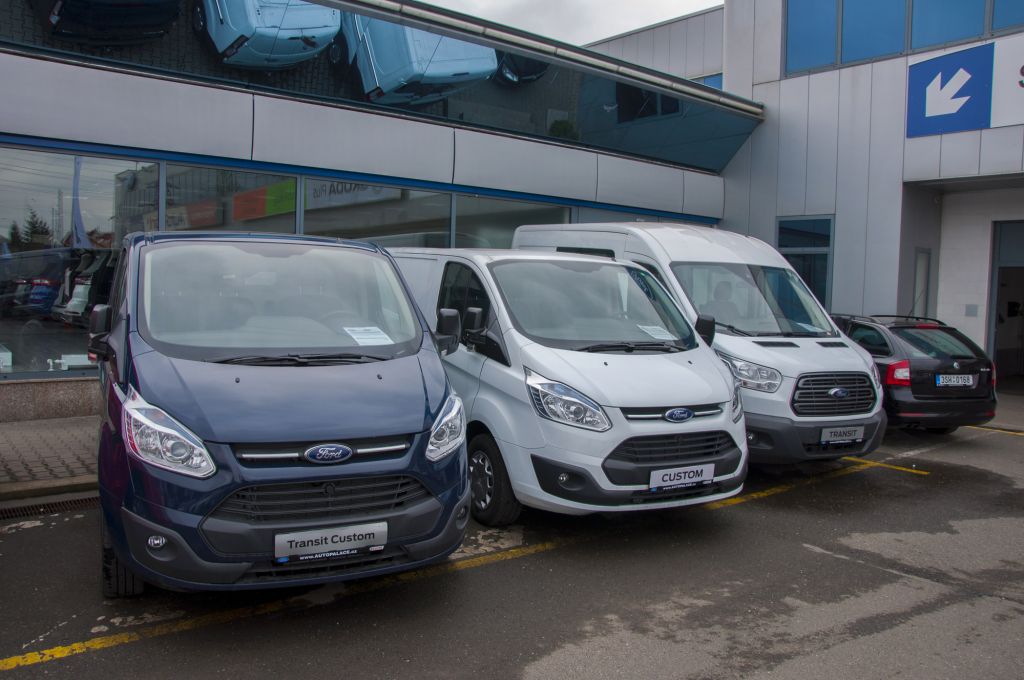

What are the dimensions for the Ford Transit Custom (2012-on)?

When determining whether the Ford Transit Custom is the right van for your plan, whether it be a professional fit-out or camper van conversion, you'll need detailed interior dimensions. Below, you'll find exactly what you'll need to pick the right van.

CENTIMETERS

  • The interior dimensions (length) of the Ford Transit Custom cargo space is 2554mm (L1), 2921mm (L2), 3037mm (L3), and 3404mm (L4).
  • The interior width of the is 1775mm and the exterior width is 1986mm.
  • The interior height of the Transit Custom is 1406mm (H1), and 1778mm (H2).
  • The wheelbase lengths are 2933mm (SWB), and 3300mm (LWB).
  • The width between the wheel arches on this model is 1351mm.

INCHES

  • The interior dimensions (length) of the Ford Transit Custom cargo space is 100.6" (L1), 115" (L2), 119.6" (L3), and 134" (L4).
  • The interior width of the is 69.9" and the exterior width is 78.2".
  • The interior height of the Transit Custom is 55.4" (H1), and 70" (H2).
  • The wheelbase lengths are 115.5" (SWB), and 129.9" (LWB).
  • The width between the wheel arches on this model is 53.2".

Are these dimensions right for you?

Production years: 2012 - present Generation: 1 Type of van: cargo Body style: Panel Also known as: Ford Tourneo Custom Ford New Transit (China) Ford Tourneo (Vietnam)

Dimensions in tables

Outside dimensions of the Transit Custom:

Exterior L1 L2 L3 L4 Width
Exterior length (mm) 4973 5340 1986
Exterior length (inch) 195.8 210.2 78.2

All models of the Ford Transit Custom have the same interior and exterior width: 69.9" or 1775mm (interior); and 78.2" or 1986mm (exterior).

Interior dimensions of the Transit Custom:

Inside dimensions L1 L2 L3 L4 Width
Interior length (mm) 2554 2921 3037 3404 1775
Interior length (inch) 100.6 115 119.6 134 69.9

Please note: there are two load area dimensions.

  • L1- length to bulkhead (SWB)
  • L2-length to bulkhead (LWB)
  • L3-under-seat storage (SWB)
  • L4-under-seat storage (LWB)

Under-seat storage will be longer, and the length at bulkhead will be shorter. We suggest using the length to bulkhead (L1 and L2) to be sure your cargo will fit.

Maximum floor surface:

Max. floor area L1 L2 L3 L4
Square meters (m2) 4.5 5.2 5.4 6
Square feet (ft2) 48.8 55.8 58 65

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1351mm, or 53.2".

Ford Transit Custom roof height:

Roof in millimeters H1 H2
Interior height (mm) 1406 1778
Exterior height (mm) 2000 2366
Roof in inches H1 H2
Interior height (inch) 55.4 70
Exterior height (inch) 78.7 93.1

Wheelbase distance:

Wheelbase short (SWB) long (LWB)
Wheelbase length (mm) 2933 3300
Wheelbase length (inch) 115 130

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 1030
Door height (mm) 1324
Door width (inch) 40.6
Door height (inch) 52.1

Rear doors:

Barn door measurements

Rear barn door Regular H2
Door width (mm) 1404
Door height (mm) 1347 1706
Door width (inch) 55.3
Door height (inch) 53 67.2

Rear tailgate door measurements

Tailgate door Regular
Door width (mm) 1404
Door height (mm) 1347
Door width (inch) 55.3
Door height (inch) 53

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft) Wall-to-wall (m) Wall-to-wall (ft)
Short wheelbase 10.9 35.8 11.6 38.1
Long wheelbase 11.8 38.7 12.3 40.4

Common Questions about the Ford Transit Custom's Dimensions

How big is the back of a Ford Transit Custom?

The cargo area of a Ford Transit Custom is 1775mm wide (70"). The interior length depends on the wheelbase model. The short wheel base is 2554mm (100.6"), while the long wheel base is 2921mm (115") long. The interior height is either 1406mm (55.4") for the low-roof model or 1778mm (70") for the high-roof model.

How long is a short wheelbase Transit Custom?

The short wheelbase (SWB) Ford Transit Custom is 2933mm or 115" long. This is the distance between the front and rear axle. The turning circle kerb-to-kerb of the SWB is 10.9m (35'9") and 11.6m (38') wall-to-wall.

What's the difference between Ford Transit Custom 280 and 300?

The only difference between the Ford Transit Custom 280 and 300 is their respective Gross Vehicle Weights, which are 2800kg (280) and 3000kg (300). The Gross Vehicle Weight (GVW) is simply the safe maximum weight capacity of the vehicle. This means the Custom 300 is capable of carrying 200kg more weight safely.


Did you find the answer to your specific question?
👍 0 👎 0
