What are the dimensions of the Ford Transit Connect (2013-on)?

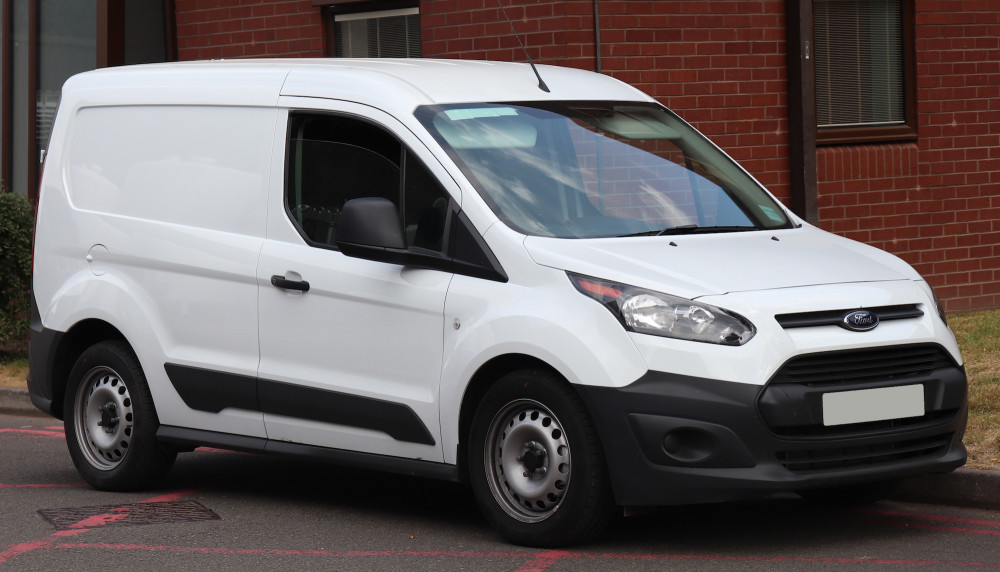

Example of a Transit Connect
A 2nd generation Ford Transit Connect form the front

I'm working on my own panel van conversion, and I found that It's pretty hard to find the dimensions of just about any van. It's all over the place. That's why I've created this article. Why not help others that are doing something similar?

This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.'

CENTIMETERS

  • The interior dimensions (length) of the Ford Transit Connect cargo space is 1800mm (L1), 1816mm (L2), 2179mm (L3), and 2217mm (L4).
  • The interior width of the Connect is 1760mm and the exterior width is 2136mm.
  • The interior height of the Ford Transit Connect is 1072mm (H1), 1245mm (H2), and 1265mm (H3).
  • The wheelbase lengths are 2262mm (SWB), and 3063mm (MWB).
  • The width between the wheel arches on this model is 1191mm.

INCHES

  • The interior dimensions (length) of the Ford Transit Connect cargo space is 70.9" (L1), 71.5" (L2), 85.8" (L3), and 87.3" (L4).
  • The interior width of the Connect is 69.3" and the exterior width is 84.1".
  • The interior height of the Ford Transit Connect is 42.2" (H1), 49" (H2), and 49.8" (H3).
  • The wheelbase lengths are 89.1" (SWB), and 120.6" (MWB).
  • The width between the wheel arches on this model is 46.9".

Prefer tables? So do I. Click the button (scrolls down), or read on:

First, more on the Connect

The Connect is a small panel van, which has a somewhat smaller wheelbase than it's big brother (the Transit). The long wheelbase however is nearly as long as the SWB Transit, so it provides plenty of room. This is the second generation Ford Transit Connect.


Dimensions in tables

Outside dimensions of the Transit Connect:

Exterior L1 L2 L3 L4 Width
Exterior length (mm) 4417 4417 4818 4818 2136
Exterior length (inch) 173.9 173.9 189.7 189.7 84.1

All models of the Ford Transit Connect have the same interior and exterior width: 69.3" or 1760mm (interior); and 84.1" or 2136mm (exterior).

Interior dimensions of the Transit Connect:

Inside dimensions L1 L2 L3 L4 Width
Interior length (mm) 1800 1816 2179 2217 1760
Interior length (inch) 70.9 71.5 85.8 87.3 69.3

Maximum floor surface:

Max. floor area L1 L2 L3 L4
Square meters (m2) 3.2 3.2 3.8 3.9
Square feet (ft2) 34.1 34.4 41.3 42

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1191mm, or 46.9".

Ford Transit Connect roof height:

Roof in millimeters H1 H2 H3
Interior height (mm) 1072 1245 1265
Exterior height (mm) 1829 1845 1850
Roof in inches H1 H2 H3
Interior height (inch) 42.2 49 49.8
Exterior height (inch) 72 72.6 72.8

Wheelbase distance:

Wheelbase short (SWB) medium (MWB)
Wheelbase length (mm) 2262 3063
Wheelbase length (inch) 89 121

Door measurements:

Doors Side door Rear door
Door width (mm) 612 1194
Door height (mm) 1140 1178
Door height H2 (mm) 1146
Side door Rear door
Door width (inch) 24.1 47
Door height (inch) 44.9 46.4
Door height H2 (inch) 45.1

More Info on Dimensions

If you want to know...

  • why there's a difference in exterior and interior width
  • what L1 or H3 means
  • how to read measurements
  • or why dimensions matter

... I encourage you to read my post on how to understand van dimensions.

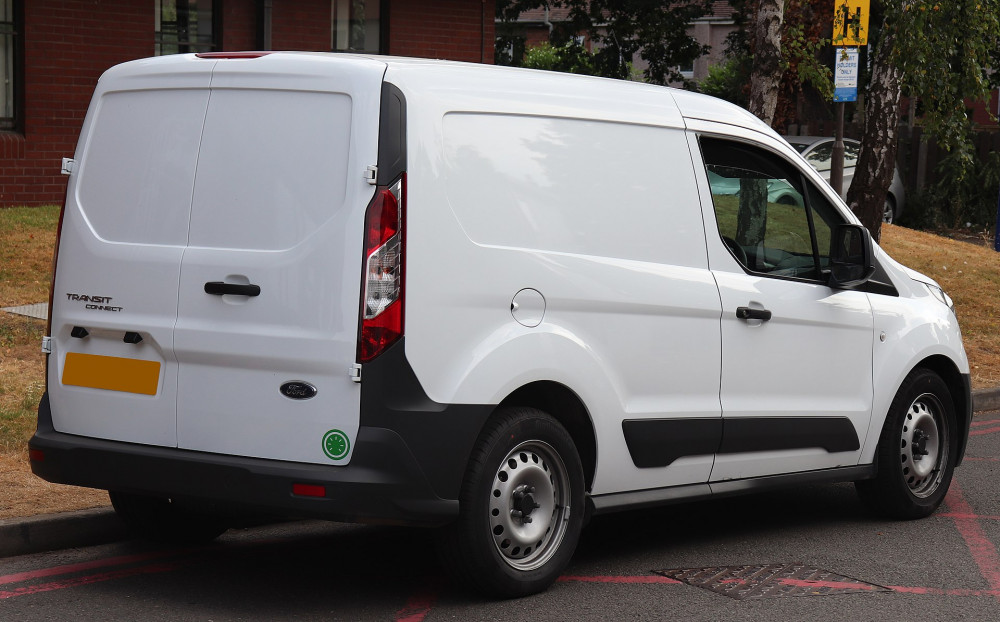

Example of a Transit Connect
A 2nd generation Transit Connect from the rear

Can you stand up in a Ford Connect?

Standing up in an empty van

The interior roof height of a Ford Transit Connect is 1072mm (H1) - 1245mm (H2) - 1265mm (H3) .
If you are of medium height (178cm or 5"10') you can't stand up in a Ford Transit Connect H1. .

What happens if I insulate the van?

Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Transit Connect H1. .

What's a Connect high top?

Ford provides their Connects with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.
