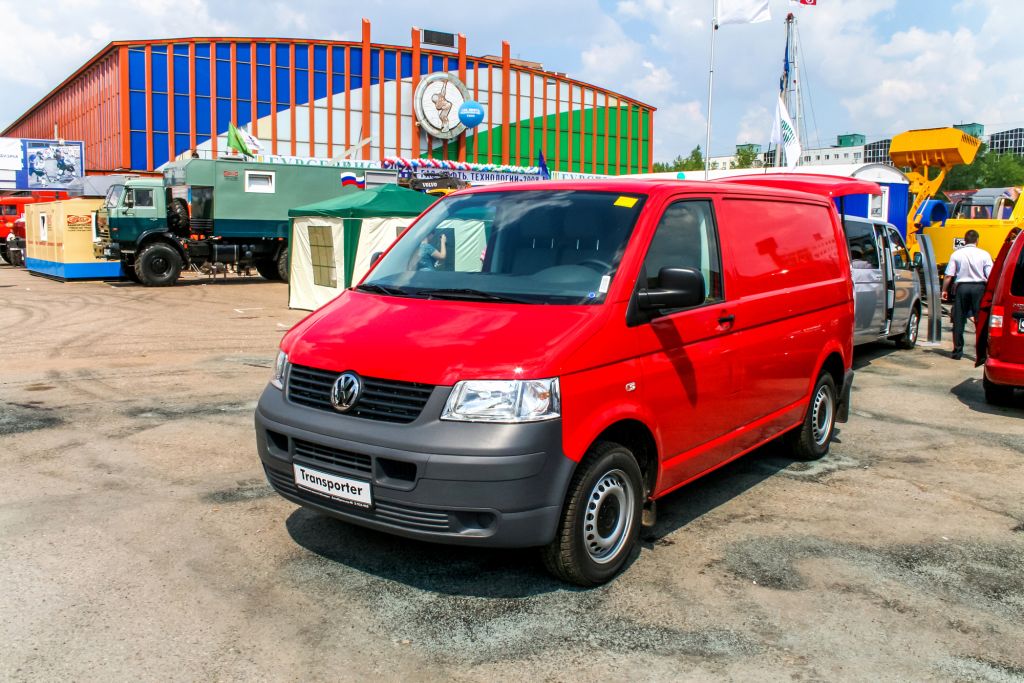

What are the dimensions for the VW Transporter T5 (2003-2015)?

CENTIMETERS

  • The interior dimensions (length) of the Volkswagen Transporter - T5 cargo space is 2353mm (L1).
  • The interior width of the is 1692mm and the exterior width is 1904mm.
  • The interior height of the Transporter - T5 is 1410mm (H1).
  • The wheelbase lengths are 3000mm (SWB), and 3400mm (LWB).
  • The width between the wheel arches on this model is 1244mm.

INCHES

  • The interior dimensions (length) of the Volkswagen Transporter - T5 cargo space is 92.6" (L1).
  • The interior width of the is 66.6" and the exterior width is 75".
  • The interior height of the Transporter - T5 is 55.5" (H1).
  • The wheelbase lengths are 118.1" (SWB), and 133.9" (LWB).
  • The width between the wheel arches on this model is 49".

Are these dimensions right for you?

Production years: 2003 - 2015 Generation: 5 Type of van: cargo Body style: Panel Also known as: Volkswagen Caravelle Volkswagen Multivan Volkswagen Doubleback (Camper) Volkswagen California

Dimensions in tables

Outside dimensions of the Transporter - T5:

Exterior L1 L3 Width
Exterior length (mm) 4892 5292 1904
Exterior length (inch) 192.6 208.3 75
  • H1=2,176mm medium height, SWB
  • H3=standard and medium height available for LWB

All models of the Volkswagen Transporter - T5 have the same interior and exterior width: 66.6" or 1692mm (interior); and 75" or 1904mm (exterior).

Interior dimensions of the Transporter - T5:

Inside dimensions L1 L3 Width
Interior length (mm) 2353 2753 1692
Interior length (inch) 92.6 108.4 66.6
  • H1=1,626mm medium height, SWB
  • H3=standard and medium height available for LWB

Maximum floor surface:

Max. floor area L1 L3
Square meters (m2) 4 4.7
Square feet (ft2) 42.9 50.1

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1244mm, or 49".

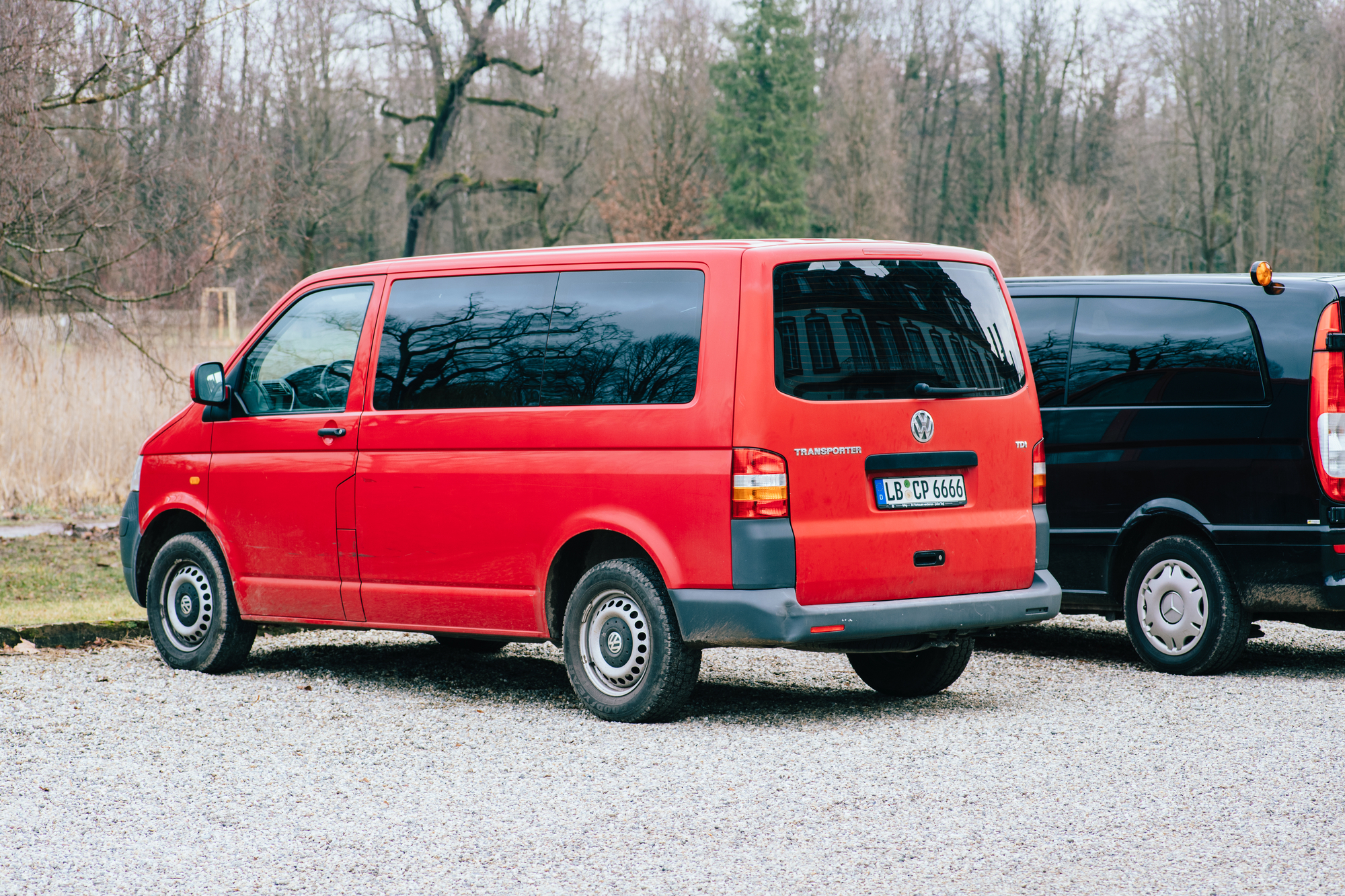

Example of a Transporter - T5

Volkswagen Transporter - T5 roof height:

Roof in millimeters H1 H3
Interior height (mm) 1410 1940
Exterior height (mm) 1990 2476
Roof in inches H1 H3
Interior height (inch) 55.5 76.4
Exterior height (inch) 78.3 97.5

Wheelbase distance:

Wheelbase short (SWB) long (LWB)
Wheelbase length (mm) 3000 3400
Wheelbase length (inch) 118 134

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 1020
Door height (mm) 1284
Door width (inch) 40.2
Door height (inch) 50.6

Rear doors:

Barn door measurements

Rear barn door
Door width (mm)
Door height (mm)
Door width (inch)
Door height (inch)

Rear tailgate door measurements

Tailgate door Regular
Door width (mm) 1486
Door height (mm) 1305
Door width (inch) 58.5
Door height (inch) 51.4

Miscellaneous dimensions:

Dimension mm inch
Front overhang 896 35.3
Rear overhang 996 39.2
