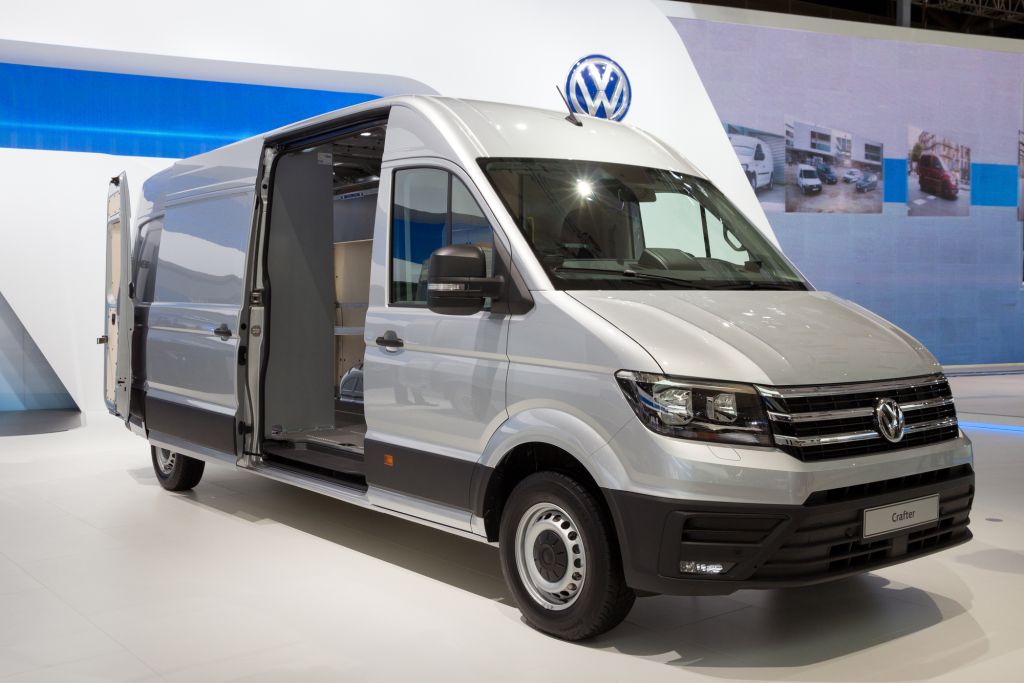

What are the Dimensions for the VW Crafter II (2017-on)?

CENTIMETERS

  • The interior dimensions (length) of the Volkswagen Crafter 2 cargo space is mm (L1), 3450mm (L2), 4300mm (L3), and 4855mm (L4).
  • The interior width of the is 1832mm and the exterior width is 2040mm.
  • The interior height of the Crafter 2 is mm (H1), and 1961mm (H2).
  • The wheelbase lengths are mm (SWB), 3640mm (MWB), 3640mm (LWB), and 4490mm (XLWB).
  • The width between the wheel arches on this model is 1380mm.

INCHES

  • The interior dimensions (length) of the Volkswagen Crafter 2 cargo space is 0" (L1), 135.8" (L2), 169.3" (L3), and 191.1" (L4).
  • The interior width of the is 72.1" and the exterior width is 80.3".
  • The interior height of the Crafter 2 is 0" (H1), and 77.2" (H2).
  • The wheelbase lengths are 0" (SWB), 143.3" (MWB), 143.3" (LWB), and 176.8" (XLWB).
  • The width between the wheel arches on this model is 54.3".

Are these dimensions right for you?

Production years: 2017 - present Generation: 2 Type of van: cargo Body style: Panel Also known as: MAN TGE Volkswagen Grand California Torsus Terrastorm

Dimensions in tables

Outside dimensions of the Crafter 2:

Exterior L2 L3 L4 Width
Exterior length (mm) 5986 6836 7391 2040
Exterior length (inch) 235.7 269.1 291 80.3

L3=7391mm Long wheelbase max

All models of the Volkswagen Crafter 2 have the same interior and exterior width: 72.1" or 1832mm (interior); and 80.3" or 2040mm (exterior).

Interior dimensions of the Crafter 2:

Inside dimensions L2 L3 L4 Width
Interior length (mm) 3450 4300 4855 1832
Interior length (inch) 135.8 169.3 191.1 72.1

Maximum floor surface:

Max. floor area L2 L3 L4
Square meters (m2) 6.3 7.9 8.9
Square feet (ft2) 68 84.8 95.7

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1380mm, or 54.3".

Example of a Crafter 2

Volkswagen Crafter 2 roof height:

Roof in millimeters H2 H3 H4
Interior height (mm) 1961
Exterior height (mm) 2355 2590 2798
Roof in inches H2 H3 H4
Interior height (inch) 77.2
Exterior height (inch) 92.7 102 110.2

Wheelbase distance:

Wheelbase medium (MWB) long (LWB) extra-long (XLWB)
Wheelbase length (mm) 3640 3640 4490
Wheelbase length (inch) 143 143 177

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 1311
Door height (mm) 1822
Door width (inch) 51.6
Door height (inch) 71.7

Rear doors:

Barn door measurements

Rear barn door Regular
Door width (mm) 1552
Door height (mm) 1840
Door width (inch) 61.1
Door height (inch) 72.4

Miscellaneous dimensions:

Dimension mm inch
Front overhang 1000 39.4
Rear overhang 1346 53
