What are the dimensions of the VW Transporter T4 (1990-2003)?

CENTIMETERS

  • The interior dimensions (length) of the Volkswagen Transporter T4 cargo space is 2485mm (L1).
  • The interior width of the is 1620mm and the exterior width is 1840mm.
  • The interior height of the Transporter T4 is 1415mm (H1), and 1900mm (H2).
  • The wheelbase lengths are 2920mm (SWB), and 3320mm (LWB).
  • The width between the wheel arches on this model is 1220mm.

INCHES

  • The interior dimensions (length) of the Volkswagen Transporter T4 cargo space is 97.8" (L1).
  • The interior width of the is 63.8" and the exterior width is 72.4".
  • The interior height of the Transporter T4 is 55.7" (H1), and 74.8" (H2).
  • The wheelbase lengths are 115" (SWB), and 130.7" (LWB).
  • The width between the wheel arches on this model is 48".

Are these dimensions right for you?

Production years: 1990 - 2003 Generation: 4 Type of van: cargo Body style: Panel Also known as: Volkswagen EuroVan (North America) Volkswagen Caravelle Volkswagen Vanagon (Japan)

Dimensions in tables

Outside dimensions of the Transporter T4:

Exterior L1 L3 Width
Exterior length (mm) 4707 5107 1840
Exterior length (inch) 185.3 201.1 72.4

All models of the Volkswagen Transporter T4 have the same interior and exterior width: 63.8" or 1620mm (interior max); and 72.4" or 1840mm (exterior).

Interior dimensions of the Transporter T4:

Inside dimensions L1 L3 Width
Interior length (mm) 2485 2885 1620
Interior length (inch) 97.8 113.6 63.8

Maximum floor surface:

Max. floor area L1 L3
Square meters (m2) 4 4.7
Square feet (ft2) 43.3 50.3

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1220mm, or 48".

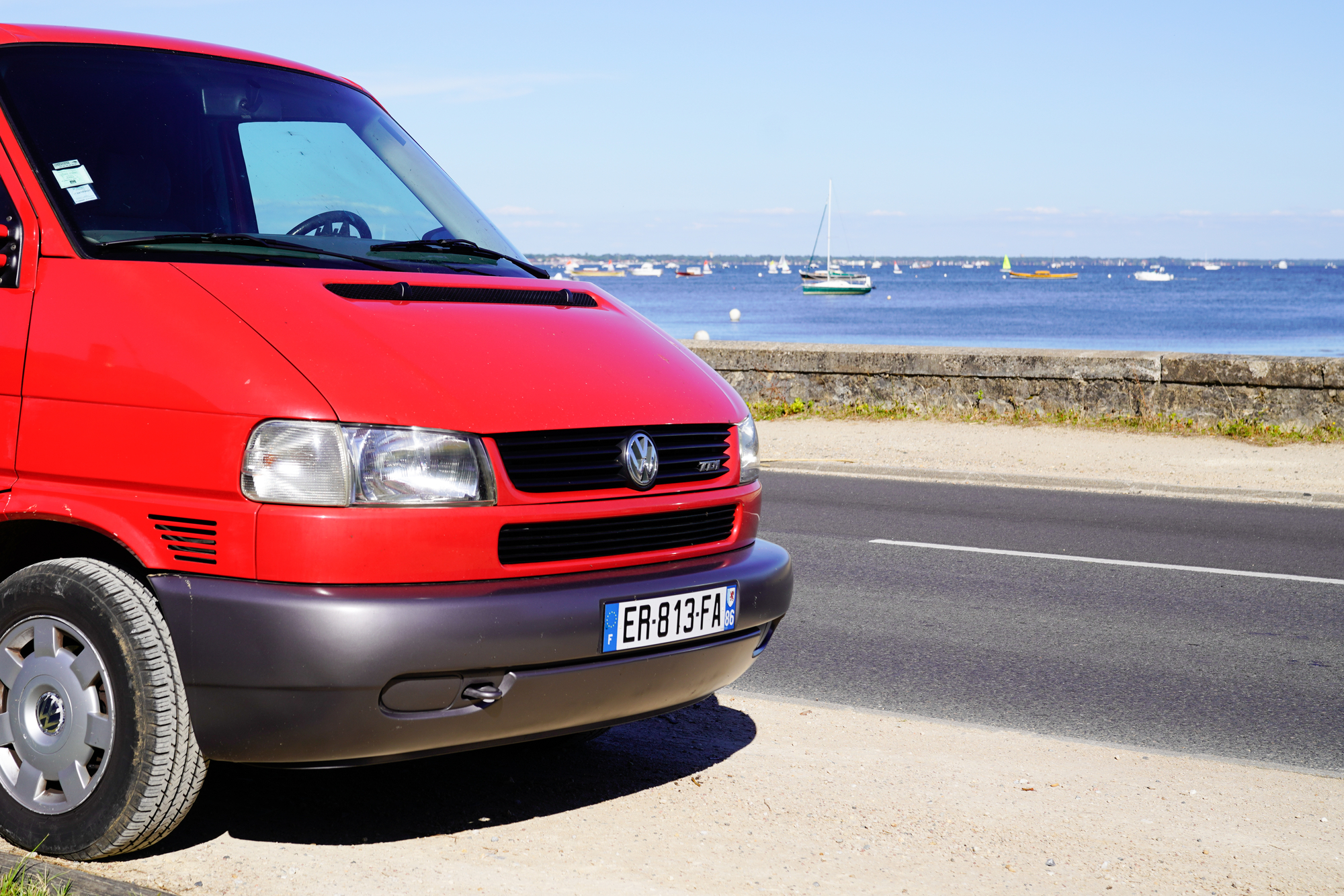

Example of a Transporter T4

Volkswagen Transporter T4 roof height:

Roof in millimeters H1 H2
Interior height (mm) 1415 1900
Exterior height (mm) 1940 2430
Roof in inches H1 H2
Interior height (inch) 55.7 74.8
Exterior height (inch) 76.4 95.7

Wheelbase distance:

Wheelbase short (SWB) long (LWB)
Wheelbase length (mm) 2920 3320
Wheelbase length (inch) 115 131

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 1040
Door height (mm) 1286
Door width (inch) 40.9
Door height (inch) 50.6

Rear doors:

Barn door measurements

Rear barn door Regular Large
Door width (mm) 1274 1274
Door height (mm) 1300 1805
Door width (inch) 50.2 50.2
Door height (inch) 51.2 71.1

Load floor height:

Height Metric (mm) Inches
Minimal loading sill height 515 20.3

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft)
Short wheelbase 11.7 38.4
Long wheelbase 12.9 42.3

Miscellaneous dimensions:

Dimension mm inch
Ground clearance unladen 180 7.1
Front track 1589 62.6
Rear track 1554 61.2
