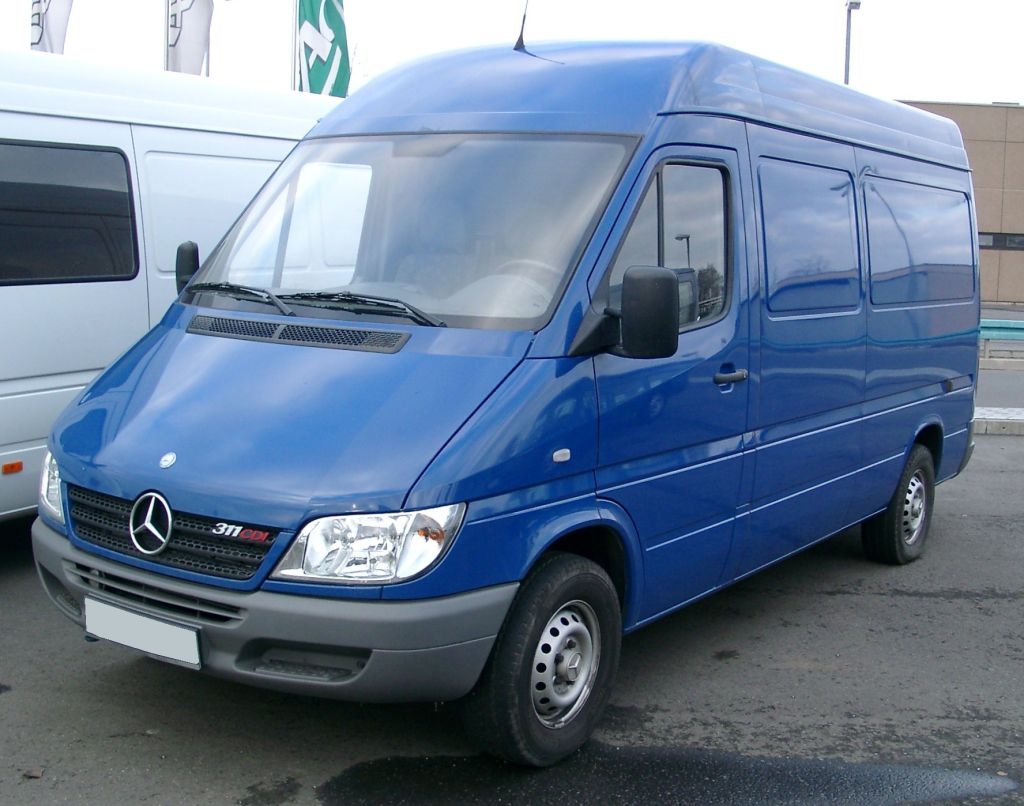

By Rudolf Stricker - Own work, CC BY-SA 3.0
CENTIMETERS
The interior dimensions (length) of the Mercedes Sprinter 1 cargo space is
2558mm (L1), 3318mm (L2), and 4278mm (L3).
The interior width of the is
and the exterior width is
1933mm.
The interior height of the Sprinter 1 is
1651mm (H1), and 1941mm (H2).
The wheelbase lengths are
3000mm (SWB), 3550mm (MWB), and 4025mm (LWB).
The width between the wheel arches on this model is 1349mm.
INCHES
The interior dimensions (length) of the Mercedes Sprinter 1 cargo space is
100.7" (L1), 130.6" (L2), and 168.4" (L3).
The interior width of the is
and the exterior width is
76.1".
The interior height of the Sprinter 1 is
65" (H1), and 76.4" (H2).
The wheelbase lengths are
118.1" (SWB), 139.8" (MWB), and 158.5" (LWB).
The width between the wheel arches on this model is 53.1".
Are these dimensions right for you?
Production years:
1995 -
2006
Generation:
1
Type of van:
cargo
Body style:
Panel
Also known as:
Dodge Sprinter (2003-2006)
Freightliner Sprinter
Mercedes-Benz Transporter T1N
Sprinter 314 (Iran)
Mercedes Benz Sprinter Classic (since 2013) (Russia)
Dimensions in tables
Jump to dimension:
outside
inside
surface
roof
wheelbase
doors
load height
Outside dimensions of the Sprinter 1:
Exterior
L1
L2
L3
Exterior length (mm)
4890
1933
Exterior length (inch)
192.5
76.1
All models of the Mercedes Sprinter 1 have the same interior and exterior width:
76.1" or
1933mm (exterior).
Interior dimensions of the Sprinter 1:
Inside dimensions
L1
L2
L3
Interior length (mm)
2558
3318
4278
Interior length (inch)
100.7
130.6
168.4
H1, H2 =Dodge sprinter Model 2500
Width between wheelarches = Dodge sprinter Model 2500
Maximum floor surface:
Max. floor area
L1
L2
L3
Square meters (m2)
Square feet (ft2)
Please note that this is an indication and does not take into account the wheel arches. The width between the wheel arches on this model is 1349mm, or 53.1" .
Mercedes Sprinter 1 roof height:
Roof in millimeters
H1
H2
Interior height (mm)
1651
1941
Exterior height (mm)
2370
Roof in inches
H1
H2
Interior height (inch)
65
76.4
Exterior height (inch)
93.3
Wheelbase distance:
Wheelbase
short (SWB)
medium (MWB)
long (LWB)
Wheelbase length (mm)
3000
3550
4025
Wheelbase length (inch)
118
140
158
Door measurements:
Available door options:
Side doors
Rear doors
Slide
Hinged
Barn
Tailgate
x
x
Side doors measurements:
Sliding door measurements
Sliding door
Regular
Door width (mm)
1300
Door height (mm)
1519
1821
Door width (inch)
51.2
Door height (inch)
59.8
71.7
Rear doors:
Barn door measurements
Rear barn door
Regular
H2
Door width (mm)
1565
Door height (mm)
1539
1839
Door width (inch)
61.6
Door height (inch)
60.6
72.4
W1, H1, H2 = Dodge sprinter Model 2500
Turning circle:
Turning circle
Kerb-to-kerb (m)
Kerb-to-kerb (ft)
Wall-to-wall (m)
Wall-to-wall (ft)
Short wheelbase
12.8
42
1.2
3.9
Miscellaneous dimensions:
Dimension
mm
inch
Ground clearance unladen
189
7.4
Front track
1610
63.4
Rear track
1630
64.2
