What are the dimensions of the Mercedes Sprinter (2018-on)?

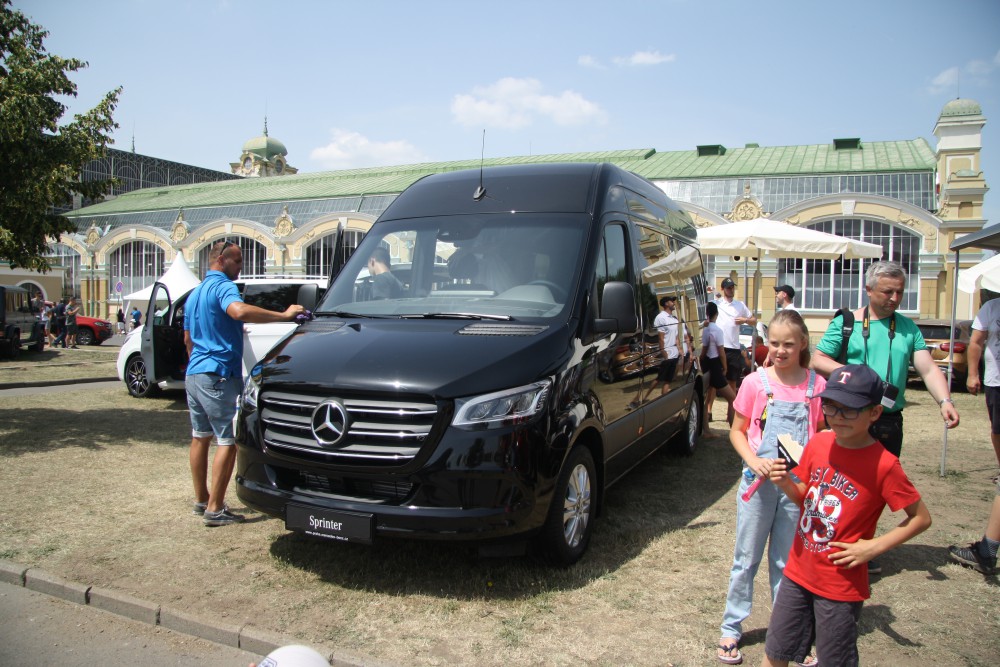

Example of a Sprinter
Mercedes-Benz Sprinter 2018 model at a fair in Prague - this is the H2L2 model.

Are you looking for that one specific measurement? For example the load area length for LWB? I've got it right here for you.

I'm working on my own panel van conversion, and I found that It's pretty hard to find the dimensions of just about any van. It's all over the place. That's why I've created this article. This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.

CENTIMETERS

  • The interior dimensions (length) of the Mercedes Sprinter cargo space is 1787mm (L1), 2607mm (L2), 4307mm (L3), and 4707mm (L4).
  • The interior width of the Sprinter Van is 1787mm and the exterior width is 2345mm.
  • The interior height of the Mercedes Sprinter is 1719mm (H1), 1976mm (H2), and 2243mm (H3).
  • The wheelbase lengths are 3250mm (SWB), 4322mm (MWB), and 5040mm (LWB).
  • The width between the wheel arches on this model is 1350mm.

INCHES

  • The interior dimensions (length) of the Mercedes Sprinter cargo space is 70.4" (L1), 102.6" (L2), 169.6" (L3), and 185.3" (L4).
  • The interior width of the Sprinter Van is 70.4" and the exterior width is 92.3".
  • The interior height of the Mercedes Sprinter is 67.7" (H1), 77.8" (H2), and 88.3" (H3).
  • The wheelbase lengths are 128" (SWB), 170.2" (MWB), and 198.4" (LWB).
  • The width between the wheel arches on this model is 53.1".

Prefer tables? So do I. Click the button (scrolls down), or read on:

First, more on the Sprinter

The 2018 Sprinter is the first model of the third generation Sprinter Vans. Check out the second generation here.

Pros and cons of the Sprinter Van:

Pros Cons
Good mileage Expensive maintenance
Extended models available Width is narrow
High tops available Expensive
Compatible with many conversion and racking kits

Dimensions in tables

Outside dimensions of the Sprinter:

Exterior L1 L2 L3 L4 Width
Exterior length (mm) 5267 5932 6967 7367 2345
Exterior length (inch) 207.4 233.5 274.3 290 92.3

All models of the Mercedes Sprinter have the same interior and exterior width: 70.4" or 1787mm (interior); and 92.3" or 2345mm (exterior).

Interior dimensions of the Sprinter:

Inside dimensions L1 L2 L3 L4 Width
Interior length (mm) 1787 2607 4307 4707 1787
Interior length (inch) 70.4 102.6 169.6 185.3 70.4

Maximum floor surface:

Max. floor area L1 L2 L3 L4
Square meters (m2) 3.2 4.7 7.7 8.4
Square feet (ft2) 34.4 50.1 82.8 90.5

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1350mm, or 53.1".

Mercedes Sprinter roof height:

Roof in millimeters H1 H2 H3
Interior height (mm) 1719 1976 2243
Exterior height (mm) 2365 2620 2831
Roof in inches H1 H2 H3
Interior height (inch) 67.7 77.8 88.3
Exterior height (inch) 93.1 103.1 111.5

Wheelbase distance:

Wheelbase short (SWB) medium (MWB) long (LWB)
Wheelbase length (mm) 3250 4322 5040
Wheelbase length (inch) 128 170 198

Door measurements:

Doors Side door Rear door
Door width (mm) 1260 1555
Door height (mm) 1899 1927
Side door Rear door
Door width (inch) 49.6 61.2
Door height (inch) 74.8 75.9

Ready to buy your own Sprinter van?

Use the best resource on the internet.

A 338-page e-book to help you find the ideal Sprinter RV for you: 2016 Sprinter RV Buyer’s Guide

Get your copy

More Info on Dimensions

If you want to know...

  • why there's a difference in exterior and interior width
  • what L1 or H3 means
  • how to read measurements
  • or why dimensions matter

... I encourage you to read my post on how to understand van dimensions.

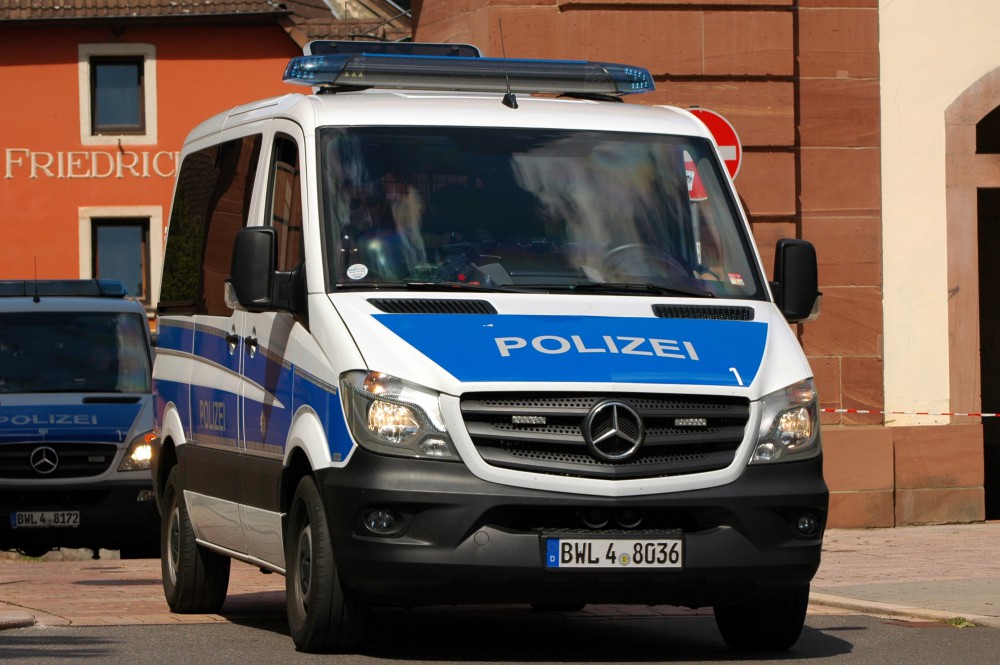

Example of a Sprinter
A German police Sprinter

Can you stand up in a Mercedes Sprinter Van?

Standing up in an empty van

The interior roof height of a Mercedes Sprinter is 1719mm (H1) - 1976mm (H2) - 2243mm (H3) .
If you are of medium height (178cm or 5"10') you can't stand up in a Mercedes Sprinter H1. But you can stand up in a Mercedes Sprinter H2 and up.

What happens if I insulate the van?

Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Sprinter H1. But you would still be able to stand up in a H2 model and up.

What's a Sprinter Van high top?

Mercedes provides their Sprinter Vans with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.

Some Useful Resources for Owners & Dreamers

Planning a professional or DIY van racking? I've previously written articles on ideas for van organization, and for carpenters and plumbers for example. Make sure to check them out here.

If you want to know which van to buy for your van conversion: I've got your back. I've written a really great and detailed article that helps you to narrow it down. I encourage you to check it out here.

If you own a Sprinter van, or are planning to buy one, and you want to know more about your Sprinter, make sure to check out the following resources:

How wide is a Mercedes Sprinter van? The 2018 Mercedes-Benz Sprinter is 92.3" or 2345 mm wide. This is the exterior width, including mirrors. The interior width of the third generation Sprinters is 70.4" or 1787mm. Of the 2006 Sprinter (second generation), the width is 70.1" or 1780 mm (interior) and 95.5" or 2426 mm (exterior).
