What are the Dimensions of the Mercedes-Benz Citan (2012-2021)?

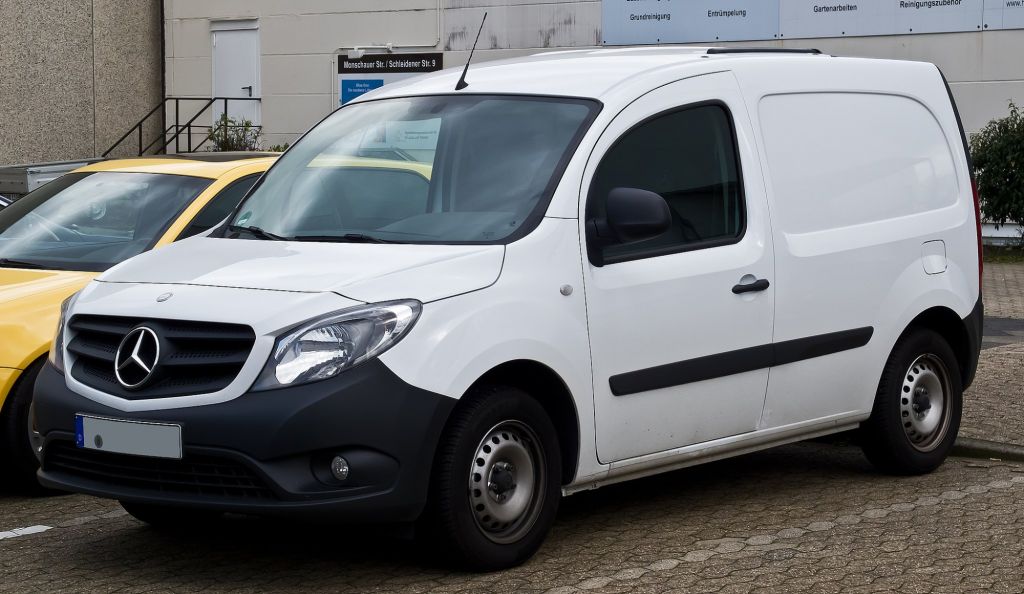

© M 93 / Wikimedia Commons

CENTIMETERS

  • The interior dimensions (length) of the Mercedes Mercedes-Benz Citan cargo space is 1731mm (L1), 2115mm (L2), and 1432mm (L3).
  • The interior width of the is and the exterior width is 1829mm.
  • The interior height of the Mercedes-Benz Citan is 1251mm (H1), 1252mm (H2), and 1154mm (H3).
  • The wheelbase lengths are 2697mm (SWB), and 3081mm (MWB).
  • The width between the wheel arches on this model is 1218mm.

INCHES

  • The interior dimensions (length) of the Mercedes Mercedes-Benz Citan cargo space is 68.1" (L1), 83.3" (L2), and 56.4" (L3).
  • The interior width of the is and the exterior width is 72".
  • The interior height of the Mercedes-Benz Citan is 49.3" (H1), 49.3" (H2), and 45.4" (H3).
  • The wheelbase lengths are 106.2" (SWB), and 121.3" (MWB).
  • The width between the wheel arches on this model is 48".

Are these dimensions right for you?

Production years: 2012 - present Generation: 2 Type of van: cargo Body style: Panel Also known as: Renault Kangoo Renault Kangoo Evolution (Morocco)

Dimensions in tables

Outside dimensions of the Mercedes-Benz Citan:

Exterior L1 L2 L3
Exterior length (mm) 4282 4666 1829
Exterior length (inch) 168.6 183.7 72

All models of the Mercedes Mercedes-Benz Citan have the same interior and exterior width: 72" or 1829mm (exterior).

Interior dimensions of the Mercedes-Benz Citan:

Inside dimensions L1 L2 L3
Interior length (mm) 1731 2115 1432
Interior length (inch) 68.1 83.3 56.4

L3=for crew van

Maximum floor surface:

Max. floor area L1 L2 L3
Square meters (m2)
Square feet (ft2)

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1218mm, or 48".

Mercedes Mercedes-Benz Citan roof height:

Roof in millimeters H1 H2 H3
Interior height (mm) 1251 1252 1154
Exterior height (mm) 1826 1836 1844
Roof in inches H1 H2 H3
Interior height (inch) 49.3 49.3 45.4
Exterior height (inch) 71.9 72.3 72.6

Wheelbase distance:

Wheelbase short (SWB) medium (MWB)
Wheelbase length (mm) 2697 3081
Wheelbase length (inch) 106 121

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x x

Side doors measurements:

Sliding door measurements

Sliding door
Door width (mm)
Door height (mm)
Door width (inch)
Door height (inch)

Hinged side door measurements

Hinged side door
Door width (mm)
Door height (mm) 1872 1942
Door width (inch)
Door height (inch) 73.7 76.5

Rear doors:

Barn door measurements

Rear barn door
Door width (mm)
Door height (mm)
Door width (inch)
Door height (inch)

Load floor height:

Height Metric (mm) Inches
Minimal loading sill height 588 23.1
Maximum loading sill height 609 24

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft)
Short wheelbase 10.7 35.1
Medium wheelbase 11.9 39
Long wheelbase 11.9 39

Miscellaneous dimensions:

Dimension mm inch
Ground clearance unladen 172 6.8
Front overhang 875 34.4
Rear overhang 710 28
Front track 1521 59.9
Rear track 1534 60.4
