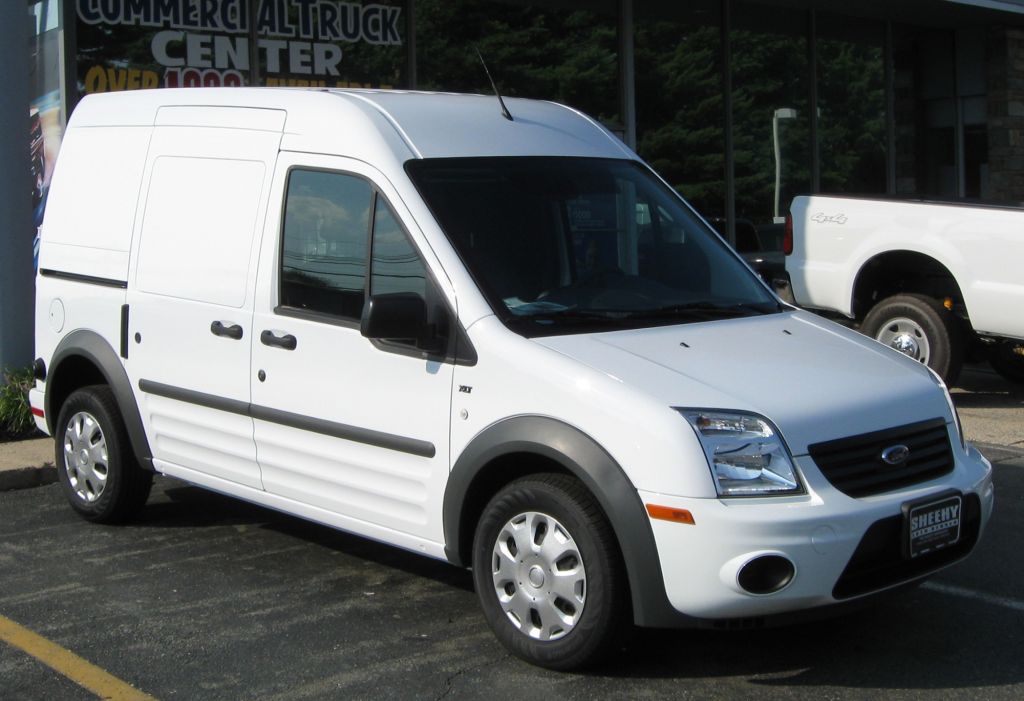

By IFCAR - Own work, Public Domain
CENTIMETERS
The interior dimensions (length) of the Ford Transit Connect 1 cargo space is
2057mm (L1).
The interior width of the is
and the exterior width is
1796mm.
The interior height of the Transit Connect 1 is
1364mm (H1).
The wheelbase lengths are
2662mm (SWB), and 3062mm (LWB).
The width between the wheel arches on this model is 1222mm.
INCHES
The interior dimensions (length) of the Ford Transit Connect 1 cargo space is
81" (L1).
The interior width of the is
and the exterior width is
70.7".
The interior height of the Transit Connect 1 is
53.7" (H1).
The wheelbase lengths are
104.8" (SWB), and 120.6" (LWB).
The width between the wheel arches on this model is 48.1".
Are these dimensions right for you?
Production years:
2002 -
2013
Generation:
1
Type of van:
cargo
Body style:
Panel
Also known as:
Ford Tourneo Connect
Azure Transit Connect Electric
Dimensions in tables
Jump to dimension:
outside
inside
surface
roof
wheelbase
doors
load height
Outside dimensions of the Transit Connect 1:
Exterior
L1
Exterior length (mm)
4418
4818
1796
Exterior length (inch)
173.9
189.7
70.7
H1,H3=EC curb weight
All models of the Ford Transit Connect 1 have the same interior and exterior width:
70.7" or
1796mm (exterior).
Interior dimensions of the Transit Connect 1:
Inside dimensions
L1
Interior length (mm)
2057
Interior length (inch)
81
Maximum floor surface:
Max. floor area
L1
Square meters (m2)
Square feet (ft2)
Please note that this is an indication and does not take into account the wheel arches. The width between the wheel arches on this model is 1222mm, or 48.1" .
Ford Transit Connect 1 roof height:
Roof in millimeters
H1
H3
Interior height (mm)
1364
Exterior height (mm)
1861
1862
Roof in inches
H1
H3
Interior height (inch)
53.7
Exterior height (inch)
73.3
73.3
Wheelbase distance:
Wheelbase
short (SWB)
long (LWB)
Wheelbase length (mm)
2662
3062
Wheelbase length (inch)
105
121
Door measurements:
Available door options:
Side doors
Rear doors
Slide
Hinged
Barn
Tailgate
x
x
Side doors measurements:
Sliding door measurements
Sliding door
Regular
Door width (mm)
815
Door height (mm)
1191
Door width (inch)
32.1
Door height (inch)
46.9
Rear doors:
Barn door measurements
Rear barn door
Regular
Door width (mm)
1275
Door height (mm)
1323
Door width (inch)
50.2
Door height (inch)
52.1
W1=Rear door opening width at floor
Load floor height:
Height
Metric (mm)
Inches
Minimal loading sill height
587
23.1
Turning circle:
Turning circle
Kerb-to-kerb (m)
Kerb-to-kerb (ft)
Short wheelbase
11.9
39
Miscellaneous dimensions:
Dimension
mm
inch
Ground clearance unladen
183
7.2
Front overhang
927
36.5
Rear overhang
749
29.5
Front track
1568
61.7
Rear track
1585
62.4
