What are the dimensions of the Renault Trafic (2014-on)?

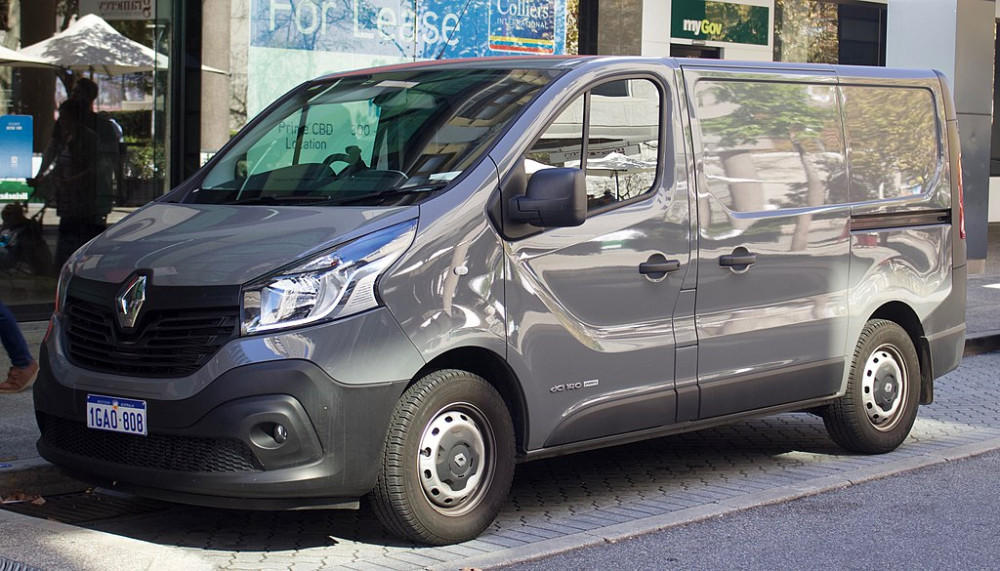

Example of a Trafic
The new Renault Trafic L1H1 (SWB)

This article will give you detailed information on the Renault Trafic; both the internal and external dimensions, the size of the load area, and some general information on the van.

This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.'

CENTIMETERS

  • The interior dimensions (length) of the Renault Trafic cargo space is 2537mm (L1), and 2937mm (L2).
  • The interior width of the Trafic is 1662mm and the exterior width is 2283mm.
  • The interior height of the Renault Trafic is 1387mm (H1), and 1898mm (H2).
  • The wheelbase lengths are 3098mm (SWB), and 3498mm (MWB).
  • The width between the wheel arches on this model is 1268mm.

INCHES

  • The interior dimensions (length) of the Renault Trafic cargo space is 99.9" (L1), and 115.6" (L2).
  • The interior width of the Trafic is 65.4" and the exterior width is 89.9".
  • The interior height of the Renault Trafic is 54.6" (H1), and 74.7" (H2).
  • The wheelbase lengths are 122" (SWB), and 137.7" (MWB).
  • The width between the wheel arches on this model is 49.9".

Prefer tables? So do I. Click the button (scrolls down), or read on:

First some more info on the Trafic

The Trafic is a small panel van with loads of options and some smart extras.

The Trafic has a load-through compartment in the bulkhead for sliding in pipes and beams. This gives you 3750 - 4150mm of loading space instead of 2537 - 2937mm. To accommodate your lengthy cargo the passenger seat can be lifted, and you simply slide in the beams into the passenger footwell.

It also comes with 16 lashing points for the short wheelbase and 18 lashing points for the medium wheelbase versions.

Renault brands the wheelbase length as S for short wheelbase (L1) and L for medium wheelbase (L2).
Even the S model can fit three Euro pallets easily.
The Trafic also marketed as the Fiat Talento, the Nissan NV300, and, until 2018 as the Opel Vivaro.


Dimensions in tables

Outside dimensions of the Trafic:

Exterior L1 L2 Width
Exterior length (mm) 4999 5399 2283
Exterior length (inch) 196.8 212.6 89.9

All models of the Renault Trafic have the same interior and exterior width: 65.4" or 1662mm (interior); and 89.9" or 2283mm (exterior).

Interior dimensions of the Trafic:

Inside dimensions L1 L2 Width
Interior length (mm) 2537 2937 1662
Interior length (inch) 99.9 115.6 65.4

Maximum floor surface:

Max. floor area L1 L2
Square meters (m2) 4.2 4.9
Square feet (ft2) 45.4 52.5

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1268mm, or 49.9".

Renault Trafic roof height:

Roof in millimeters H1 H2
Interior height (mm) 1387 1898
Exterior height (mm) 1971 2465
Roof in inches H1 H2
Interior height (inch) 54.6 74.7
Exterior height (inch) 77.6 97

Wheelbase distance:

Wheelbase short (SWB) medium (MWB)
Wheelbase length (mm) 3098 3498
Wheelbase length (inch) 122 138

Door measurements:

Doors Side door Rear door
Door width (mm) 1030 1391
Door height (mm) 1284 1320
Door height H2 (mm) 1820
Side door Rear door
Door width (inch) 40.6 54.8
Door height (inch) 50.6 52
Door height H2 (inch) 71.7

More Info on Dimensions

If you want to know...

  • why there's a difference in exterior and interior width
  • what L1 or H3 means
  • how to read measurements
  • or why dimensions matter

... I encourage you to read my post on how to understand van dimensions.

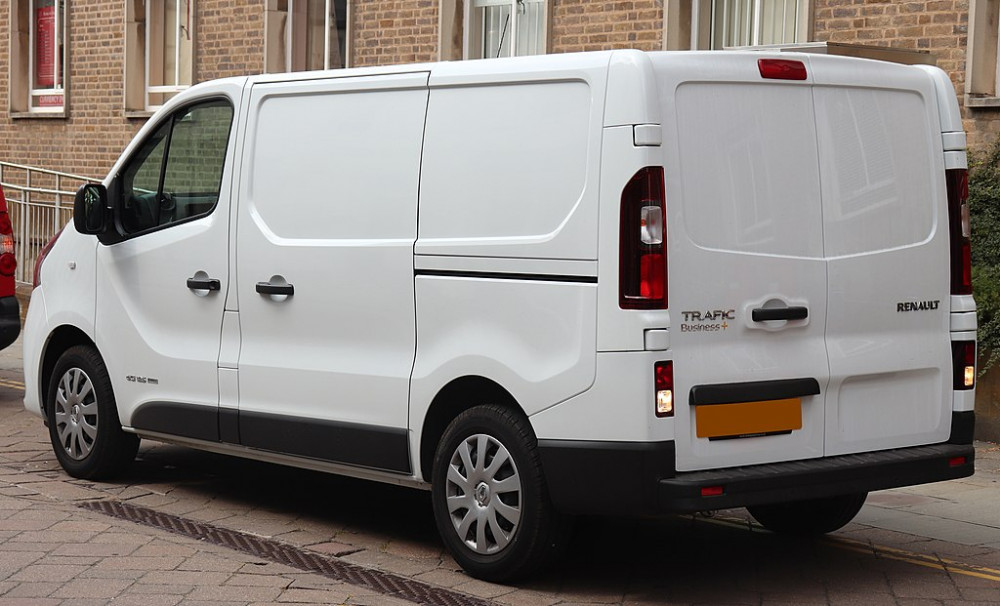

Example of a Trafic
The new Renault Trafic L1H1 (SWB) from the rear

Can you stand up in a Renault Trafic?

Standing up in an empty van

The interior roof height of a Renault Trafic is 1387mm (H1) - 1898mm (H2) .
If you are of medium height (178cm or 5"10') you can't stand up in a Renault Trafic H1. But you can stand up in a Renault Trafic H2 and up.

What happens if I insulate the van?

Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Trafic H1. But you would still be able to stand up in a H2 model and up.

What's a Trafic high top?

Renault provides their Trafics with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.
