What are the dimensions of the Fiat Talento (2014-on)?
This article will give you detailed information on the Talento panel van: internal and external dimensions, the length of the load area, and some general information on the van.
This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.
CENTIMETERS
- The interior dimensions (length) of the Fiat Talento cargo space is 2537mm (L1), and 2937mm (L2).
- The interior width of the Talento is 1662mm and the exterior width is 2283mm.
- The interior height of the Fiat Talento is 1387mm (H1), and 1898mm (H2).
- The wheelbase lengths are 3098mm (SWB), and 3498mm (MWB).
- The width between the wheel arches on this model is 1268mm.
INCHES
- The interior dimensions (length) of the Fiat Talento cargo space is 99.9" (L1), and 115.6" (L2).
- The interior width of the Talento is 65.4" and the exterior width is 89.9".
- The interior height of the Fiat Talento is 54.6" (H1), and 74.7" (H2).
- The wheelbase lengths are 122" (SWB), and 137.7" (MWB).
- The width between the wheel arches on this model is 49.9".
Prefer tables? Click the button (scrolls down)
First some more info on the Talento

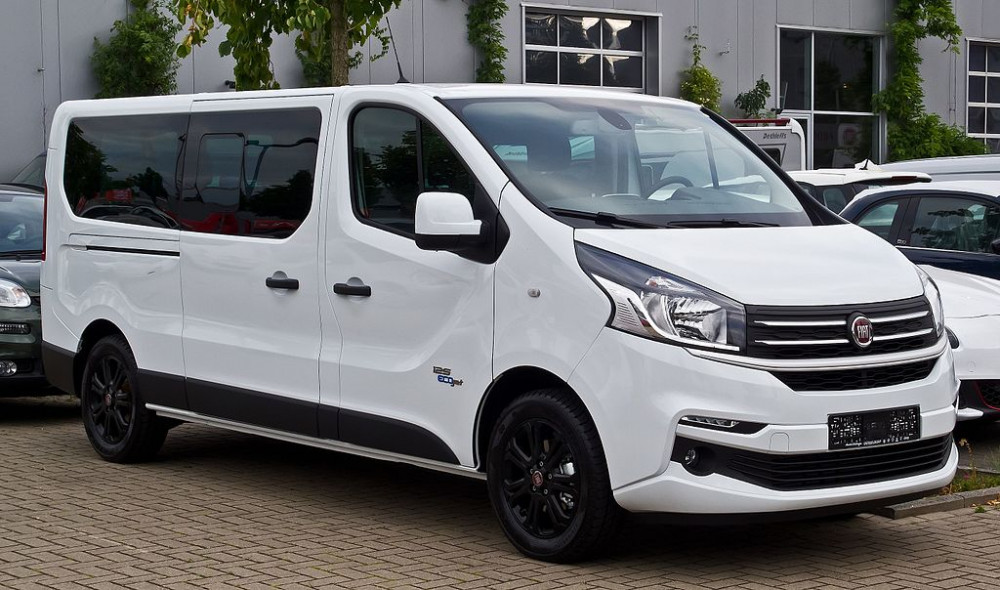

The Talento is a small panel van that's very similar to the Renault Trafic. It's made by Renault in Sandouville, France. This means it has the same internal dimensions. The only thing different from the Trafic is the front design and the engine. Fiat offers the Talento with its own MultiJet and EcoJet engines.
Fiat brands the short wheelbase length as S (or L1) and the medium wheelbase as L (or L2).
Even the short wheelbase model can hold up to three Euro pallets effortlessly.

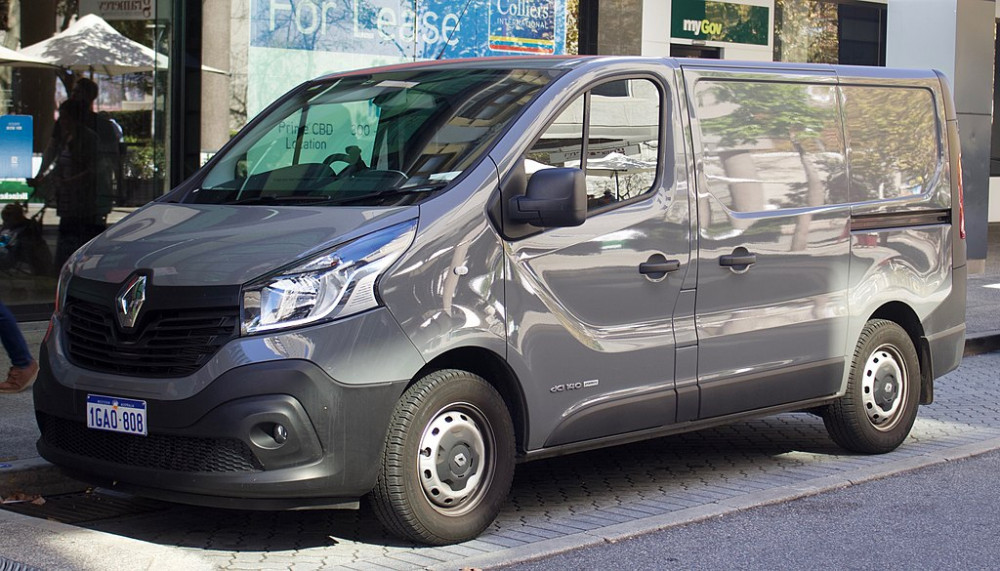

The base of the Talento, the Renault Trafic, is also marketed as the Nissan NV300, and, up until 2018 as the Opel Vivaro.
Dimensions in tables
Outside dimensions of the Talento:
| Exterior | L1 | L2 | Width |
|---|---|---|---|
| Exterior length (mm) | 4999 | 5399 | 2283 |
| Exterior length (inch) | 196.8 | 212.6 | 89.9 |
All models of the Fiat Talento have the same interior and exterior width: 65.4" or 1662mm (interior); and 89.9" or 2283mm (exterior).
Interior dimensions of the Talento:
| Inside dimensions | L1 | L2 | Width |
|---|---|---|---|
| Interior length (mm) | 2537 | 2937 | 1662 |
| Interior length (inch) | 99.9 | 115.6 | 65.4 |
Maximum floor surface:
| Max. floor area | L1 | L2 |
|---|---|---|
| Square meters (m2) | 4.2 | 4.9 |
| Square feet (ft2) | 45.4 | 52.5 |
Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1268mm, or 49.9".
Fiat Talento roof height:
| Roof in millimeters | H1 | H2 |
|---|---|---|
| Interior height (mm) | 1387 | 1898 |
| Exterior height (mm) | 1971 | 2465 |
| Roof in inches | H1 | H2 |
| Interior height (inch) | 54.6 | 74.7 |
| Exterior height (inch) | 77.6 | 97 |
Wheelbase distance:
| Wheelbase | short (SWB) | medium (MWB) |
|---|---|---|
| Wheelbase length (mm) | 3098 | 3498 |
| Wheelbase length (inch) | 122 | 138 |
Door measurements:
| Doors | Side door | Rear door |
|---|---|---|
| Door width (mm) | 1030 | 1391 |
| Door height (mm) | 1284 | 1320 |
| Door height H2 (mm) | 1820 | |
| Side door | Rear door | |
| Door width (inch) | 40.6 | 54.8 |
| Door height (inch) | 50.6 | 52 |
| Door height H2 (inch) | 71.7 | |
More Info on Dimensions
If you want to know...
- why there's a difference in exterior and interior width
- what L1 or H3 means
- how to read measurements
- or why dimensions matter
... I encourage you to read my post on how to understand van dimensions.
Can you stand up in a Fiat Talento?
Standing up in an empty van
The interior roof height of a Fiat Talento is
1387mm (H1) - 1898mm (H2) .
If you are of medium height (178cm or 5"10') you
can't stand up in a Fiat Talento H1.
But you can stand up in a Fiat Talento H2 and up.
What happens if I insulate the van?
Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Talento H1. But you would still be able to stand up in a H2 model and up.
What's a Talento high top?
Fiat provides their Talentos with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.
