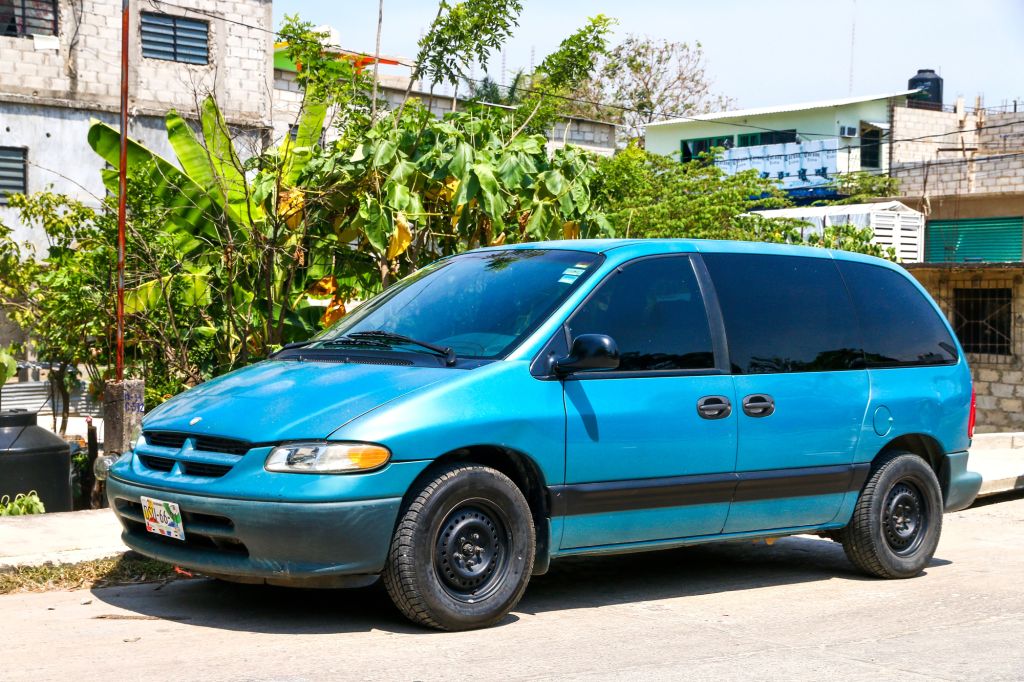

What are the Dimensions of the Dodge Caravan (1996-2000)?

CENTIMETERS

  • The interior dimensions (length) of the Dodge Caravan cargo space is 2194.56mm (L1).
  • The interior width of the is and the exterior width is
  • The interior height of the Caravan is 1252.22mm (H1).
  • The wheelbase lengths are 2878mm (SWB).
  • The width between the wheel arches on this model is 1247.14mm.

INCHES

  • The interior dimensions (length) of the Dodge Caravan cargo space is 86.4" (L1).
  • The interior width of the is and the exterior width is
  • The interior height of the Caravan is 49.3" (H1).
  • The wheelbase lengths are 113.3" (SWB).
  • The width between the wheel arches on this model is 49.1".

Are these dimensions right for you?

Production years: 1996 - 2000 Generation: 3rd Type of van: cargo Body style: Panel Also known as: Dodge Grand Caravan (LWB Model) 3-Star Grand Caravan SXZ6510 Dodge Caravan (SWB Model)

Dimensions in tables

Outside dimensions of the Caravan:

Exterior L1
Exterior length (mm) 4732
Exterior length (inch) 186.3

All models of the Dodge Caravan have the same interior and exterior width: .

Interior dimensions of the Caravan:

Inside dimensions L1
Interior length (mm) 2194.56
Interior length (inch) 86.4

Maximum floor surface:

Max. floor area L1
Square meters (m2)
Square feet (ft2)

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1247.14mm, or 49.1".

Dodge Caravan roof height:

Roof in millimeters H1
Interior height (mm) 1252.22
Exterior height (mm) 1740
Roof in inches H1
Interior height (inch) 49.3
Exterior height (inch) 68.5

Wheelbase distance:

Wheelbase short (SWB)
Wheelbase length (mm) 2878
Wheelbase length (inch) 113

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x

Side doors measurements:

Rear doors:

Barn door measurements

Rear barn door Regular
Door width (mm) 1303.02
Door height (mm) 1031.24
Door width (inch) 51.3
Door height (inch) 40.6

Miscellaneous dimensions:

Dimension mm inch
Front track 1600 63
Rear track 1626 64
