Mercedes Sprinter Floor Plans (128, 144, 170 & 170 ext)

Ultimate Mercedes Sprinter Interior Planning Resource

For just €4.99, you get everything you need to start sketching.

28 floor plan versions in total
accurate floor plans of this Sprinter
3 printable PDFs (metric, UK, inches)
all 4 wheelbase lengths
with easy sketching grid and scale
with UK floor plans

Get my floor plans now

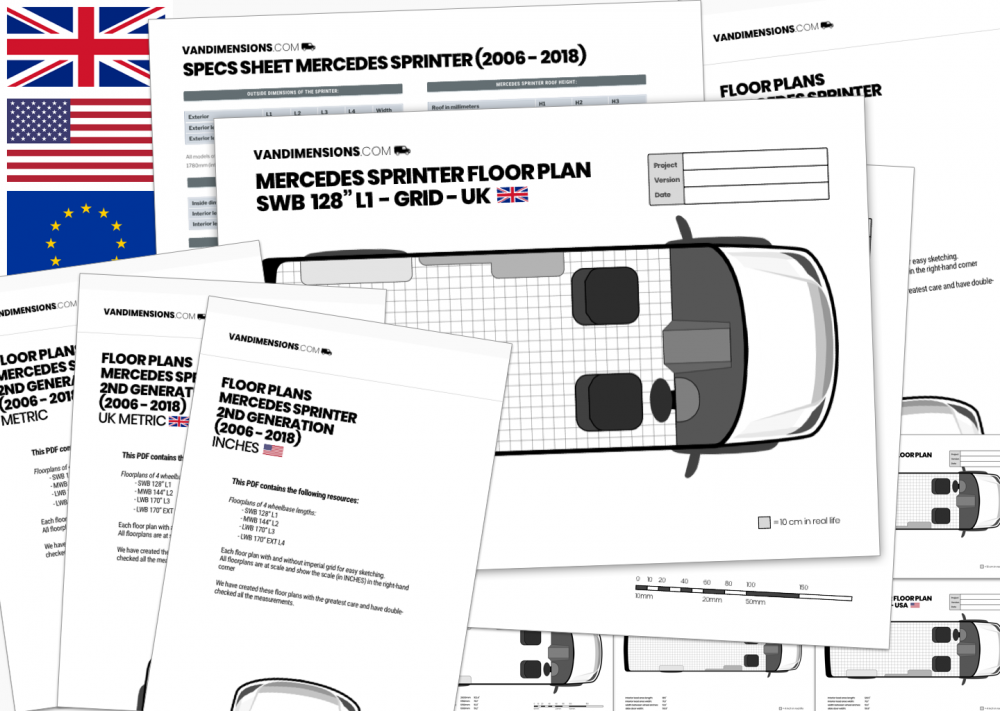

(Low resolution on purpose. Real floor plans are high resolution)

It's finally here, and I'm so excited to share it with you: Accurate floor plans that are ready to plan your interior layout.
The first batch of floor plans is finished. I've created a detailed set of floor plans for the Mercedes Sprinter 2nd Generation, made from 2006 - 2018.

For just €4.99, you get everything you need to start sketching right away.

I'm really proud of it, it's a really great resource. When I started my van conversion, I wish I had these kind of floor plans. I couldn't find them, and it took me A LONG TIME to tweak and get all measurements right - like the distance between the wheel arches. Every time, I had to start over with my layout, since it was now off by centimeters. It's a pain to get everything measured accurately. I made them so that you don't have to. With these floor plans, you will get instant access to accurate and to-scale floor plans of all Sprinter lengths.

This bundle contains loads of helpful resources:

  • floor plans of ALL (4) wheelbase lengths. For each length, you'll get:
  • a printable, to scale PDF file for metric, inches, and UK
  • with and without grid for easy sketching
  • actually accurate & to scale
  • floor plans in PNG format for use in design programs
  • all dimensions are double-checked
  • PDF specs sheet with general dimensions of the Sprinter
  • high-quality and high-resolution images

You buy them once - if I update them, you will get an email from me with a new download link.

These floor plans are specifically designed for:

Want to start planning your van interior right away?

You'll get scale templates, with and without grid, of every length.

Download floor plans

Why You Should Get These Floor Plans

They are actually accurate

I've checked the dimensions for these floor plans thoroughly - and then once more. When I compared them to other floor plans, I found that these are not accurate - not by a long shot. Which made me try even harder to ensure these are correct.

You'll get all lengths in one bundle

If you're still shopping around for the right van length for you interior, this bundle is perfect. You can try out all the Sprinter wheelbases with different layouts. You'll get access to every length you want.

You'll get both CMs and INCHES

I wanted to make sure as many people will be able to make use of this great resource.
I've made sure you'll have both plans with a grid & scale in CMs and in inches. This way, both planners from the UK, US and the rest of the world can use these plans.

UK floor plans are included

I've also added UK floor plans, which means the plans show a left-side Sprinter van. UK residents can use exactly the same resources, having four lengths, both with and without scale grid.

Easy sketching grid

I've added gridded floor plans to make sketching incredibly easy. This means you can start planning your van layout immediately. I've made sure it's broken up into manageble pieces:

  • Metric grid has a spacing of 10cm
  • Imperial grid has a spacing of 4 inches

If you don't want the grid, that's fine! You'll also get blanc floor plans, for you to fill out any way you like.

Easy to print

I've checked them myself. These plans are designed for high contrast and will be printed properly, even at economy settings.

They look nice.

Ultimate Mercedes Sprinter Interior Planning Resource

For just €4.99, you get everything you need to start sketching.

28 floor plan versions in total
accurate floor plans of this Sprinter
3 printable PDFs (metric, UK, inches)
all 4 wheelbase lengths
with easy sketching grid and scale
with UK floor plans

Get my floor plans now

Need Another Model?

You'll find all available floor plans in the floor plan database here.

If you're in need of another van model, I will be adding more models over time. I'm happy to shoot you an email once they're available.

Please let me know by entering your email below:

Frequently Asked Questions

How long will I be able to download the files?

You can access your files anytime, forever. If you lose your floor plans, you can easily download them again using the download link in your email inbox.

How can I download the files?

You will get an instant download AND a download link in your email. Here, you can download EVERY resource on the Mercedes Sprinter 2nd Generation (made from 2009 - 2018.)

Can I pay using PayPal?

Yes, you can, and for us, it's the best way too (lowest cost).

Can I pay using credit card?

Yes, you can.

What will I get exactly?

You will get floor plans of this Mercedes Sprinter van.
You will get access to floor plans of all wheelbase lengths. These are:

  • SWB - 128" - L1
  • MWB - 144" - L2
  • LWB - 170" - L3
  • EXT - 170" - L4

For each length, there are templates with and without grid. All the files come in PDF and PNG. You can simply print the PDF. Every floor plan is to scale and accurate.

Will I get other van models later on?

No, you'll have to purchase other models separately. Be sure to sign up for email updates on those.

What's the refund policy?

We really believe this is a quality product. It will give you everything to hit the ground running on your van planning. That's why we have a strict no-refund policy.

Okay, I want those floor plans

This great product will really help you get started on your van layout planning quickly.

Download floor plans

Have Any Questions?

Still have questions about the product? Shoot us an email here:
