What are the dimensions of the Citroën Jumper (2006-on)?

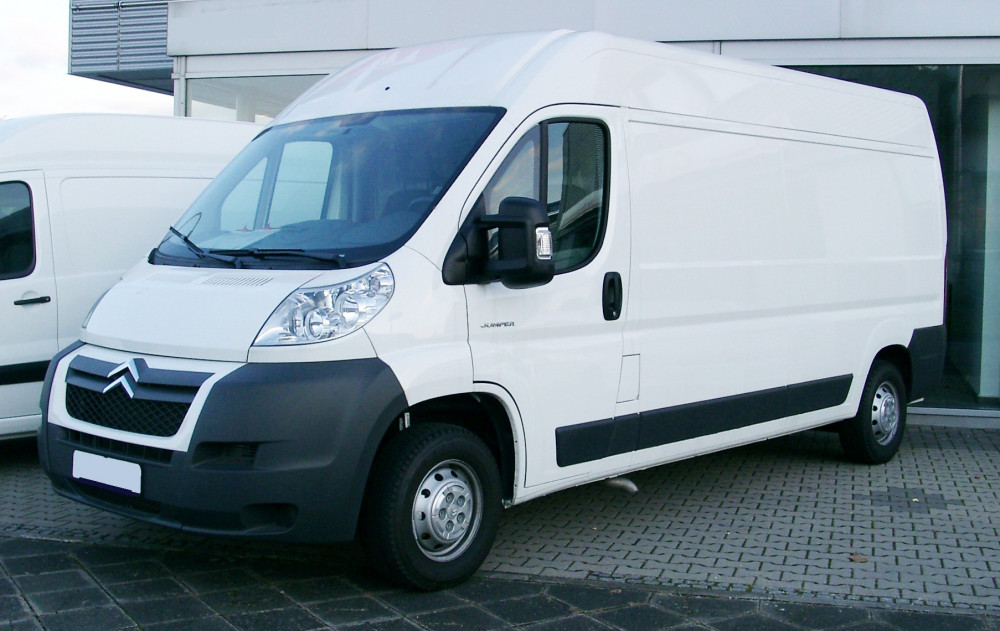

Example of a Jumper
A Jumper from 2007 - L2H2

I'm working on my own panel van conversion, and I found that It's pretty hard to find the dimensions of just about any van. It's all over the place. That's why I've created this article. Why not help others that are doing something similar?

This page will be helpful when you're converting a van into a camper van, or when you're planning the layout for your new corporate van.'

CENTIMETERS

  • The interior dimensions (length) of the Citroën Jumper cargo space is 2670mm (L1), 3120mm (L2), 3705mm (L3), and 4070mm (L4).
  • The interior width of the Citroën Jumper is 1870mm and the exterior width is 2254mm.
  • The interior height of the Citroën Jumper is 1662mm (H1), 1932mm (H2), and 2172mm (H3).
  • The wheelbase lengths are 3000mm (SWB), 3450mm (MWB), 3800mm (LWB), and 4035mm (XLWB).
  • The width between the wheel arches on this model is 1422mm.

INCHES

  • The interior dimensions (length) of the Citroën Jumper cargo space is 105.1" (L1), 122.8" (L2), 145.9" (L3), and 160.2" (L4).
  • The interior width of the Citroën Jumper is 73.6" and the exterior width is 88.7".
  • The interior height of the Citroën Jumper is 65.4" (H1), 76.1" (H2), and 85.5" (H3).
  • The wheelbase lengths are 118.1" (SWB), 135.8" (MWB), 149.6" (LWB), and 158.9" (XLWB).
  • The width between the wheel arches on this model is 56".

Prefer tables? So do I. Click the button (scrolls down), or read on:

First, more on the Jumper

The Jumper is a rebranding of the Fiat Ducato. It uses the same chassis as the RAM ProMaster and the Peugeot Boxer. Check out the RAM ProMaster's dimensions here.


Dimensions in tables

Outside dimensions of the Jumper:

Exterior L1 L2 L3 L4 Width
Exterior length (mm) 4963 5413 5998 6363 2254
Exterior length (inch) 195.4 213.1 236.1 250.5 88.7

All models of the Citroën Jumper have the same interior and exterior width: 73.6" or 1870mm (interior); and 88.7" or 2254mm (exterior).

Interior dimensions of the Jumper:

Inside dimensions L1 L2 L3 L4 Width
Interior length (mm) 2670 3120 3705 4070 1870
Interior length (inch) 105.1 122.8 145.9 160.2 73.6

Maximum floor surface:

Max. floor area L1 L2 L3 L4
Square meters (m2) 5 5.8 6.9 7.6
Square feet (ft2) 53.7 62.8 74.6 81.9

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1422mm, or 56".

Citroën Jumper roof height:

Roof in millimeters H1 H2 H3
Interior height (mm) 1662 1932 2172
Exterior height (mm) 2254 2524 2764
Roof in inches H1 H2 H3
Interior height (inch) 65.4 76.1 85.5
Exterior height (inch) 88.7 99.4 108.8

Wheelbase distance:

Wheelbase short (SWB) medium (MWB) long (LWB) extra-long (XLWB)
Wheelbase length (mm) 3000 3450 3800 4035
Wheelbase length (inch) 118 136 150 159

Door measurements:

Doors Side door Rear door
Door width (mm) 1250 1562
Door height (mm) 1485 1520
Door height H2 (mm) 1790
Side door Rear door
Door width (inch) 49.2 61.5
Door height (inch) 58.5 59.8
Door height H2 (inch) 70.5

More Info on Dimensions

If you want to know...

  • why there's a difference in exterior and interior width
  • what L1 or H3 means
  • how to read measurements
  • or why dimensions matter

... I encourage you to read my post on how to understand van dimensions.

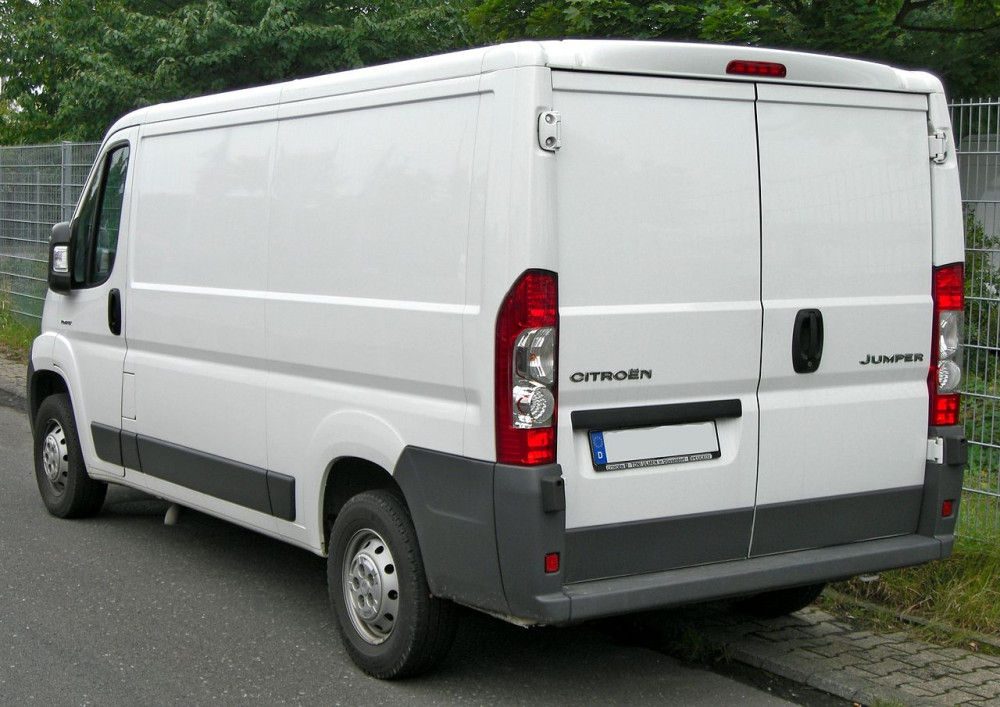

Example of a Jumper
A Citroën Jumper from the rear - L2H1

Can you stand up in a Citroën Citroën Jumper?

Standing up in an empty van

The interior roof height of a Citroën Jumper is 1662mm (H1) - 1932mm (H2) - 2172mm (H3) .
If you are of medium height (178cm or 5"10') you can't stand up in a Citroën Jumper H1. But you can stand up in a Citroën Jumper H2 and up.

What happens if I insulate the van?

Are you planning on insulating and cladding the floor and roof? In that case you can't stand up fully in a Jumper H1. But you would still be able to stand up in a H2 model and up.

What's a Citroën Jumper high top?

Citroën provides their Citroën Jumpers with both high and low tops. High tops are elevated roofs to provide more headroom. Generally, everything above H2 is considered a high top, and should offer sufficient space to stand up fully.

Citroën Jumper Camper Van Example

The Citroën Jumper is a great base to build a camper van from. Here's a cool example video of a full conversion (start to finish):
