What are the Dimensions for the Holden Combo C (2001-2011)?

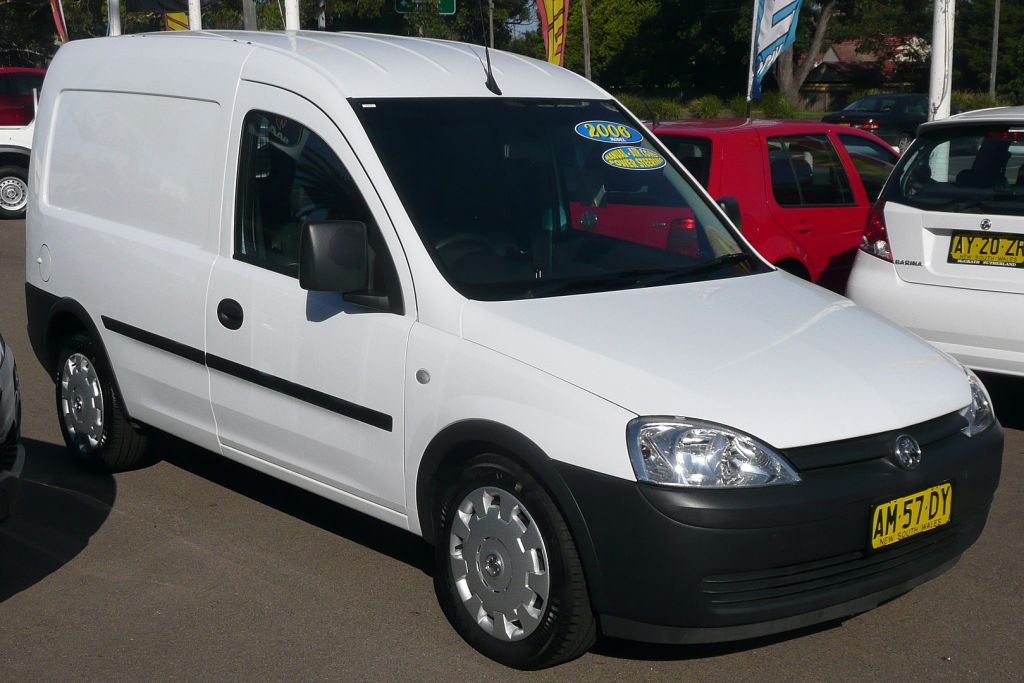

By OSX - Own work, Public Domain

CENTIMETERS

  • The interior dimensions (length) of the Holden Combo C cargo space is 1787mm (L1).
  • The interior width of the is 1348mm and the exterior width is 1684mm.
  • The interior height of the Combo C is 1175mm (H1).
  • The wheelbase lengths are 2715mm (SWB).
  • The width between the wheel arches on this model is 1107mm.

INCHES

  • The interior dimensions (length) of the Holden Combo C cargo space is 70.4" (L1).
  • The interior width of the is 53.1" and the exterior width is 66.3".
  • The interior height of the Combo C is 46.3" (H1).
  • The wheelbase lengths are 106.9" (SWB).
  • The width between the wheel arches on this model is 43.6".

Are these dimensions right for you?

Production years: 2001 - 2011 Generation: 3 Body style: Panel Also known as: Opel Combo C

Dimensions in tables

Outside dimensions of the Combo C:

Exterior L1 Width
Exterior length (mm) 4322 1684
Exterior length (inch) 170.2 66.3

All models of the Holden Combo C have the same interior and exterior width: 53.1" or 1348mm (interior max); and 66.3" or 1684mm (exterior).

Interior dimensions of the Combo C:

Inside dimensions L1 Width
Interior length (mm) 1787 1348
Interior length (inch) 70.4 53.1

Maximum floor surface:

Max. floor area L1
Square meters (m2) 2.4
Square feet (ft2) 25.9

Please note that this is an indication and does not take into account the wheel arches.
The width between the wheel arches on this model is 1107mm, or 43.6".

Holden Combo C roof height:

Roof in millimeters H1
Interior height (mm) 1175
Exterior height (mm) 1801
Roof in inches H1
Interior height (inch) 46.3
Exterior height (inch) 70.9

Wheelbase distance:

Wheelbase short (SWB)
Wheelbase length (mm) 2715
Wheelbase length (inch) 107

Door measurements:

Available door options:

Side doors Rear doors
Slide Hinged Barn Tailgate
x x x

Side doors measurements:

Sliding door measurements

Sliding door Regular
Door width (mm) 620
Door height (mm) 913
Door width (inch) 24.4
Door height (inch) 35.9

Hinged side door measurements

Hinged side door Regular
Door width (mm) 620
Door height (mm) 913
Door width (inch) 24.4
Door height (inch) 35.9

Rear doors:

Barn door measurements

Rear barn door Regular
Door width (mm) 1238
Door height (mm) 1139
Door width (inch) 48.7
Door height (inch) 44.8

Load floor height:

Height Metric (mm) Inches
Minimal loading sill height 584 23

Turning circle:

Turning circle Kerb-to-kerb (m) Kerb-to-kerb (ft) Wall-to-wall (m) Wall-to-wall (ft)
Short wheelbase 10.82 35.5 11.25 36.9

Miscellaneous dimensions:

Dimension mm inch
Ground clearance unladen 150 5.9
Front track 1417 55.8
Rear track 1440 56.7
